New
Case Construction 580 Super N WT Construction King Backhoe Loader
New
Case Construction 580 Super N WT Construction King Backhoe Loader
Model: 580SN WT
- 110 engine horsepower
- 14' 5" dig depth
- Up to 25.2-mph
Product Description

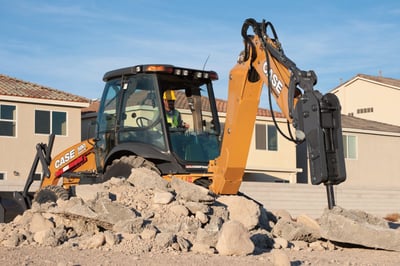

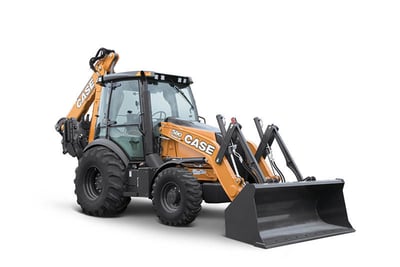

580 SUPER N WT CONSTRUCTION KING BACKHOE LOADER
With a more powerful engine and at nearly 102 inches wide, the 110-hp, 580 Super N Wide Track takes Case's most popular backhoe loader to a whole new level. It provides greater strength and stability, and houses a spacious, upgraded cab with intuitive fingertip controls. More high-performance features that contractors want come standard, including the responsive PowerDrive transmission, fierce PowerBoost function, fuel-saving ECO Mode, ProControl and SiteWatch Telematics. It can also be configured with Comfort Steer for truck-loading tasks, selectable Auto-Ride Control and more.
SITEWATCH TELEMATICS
INDUSTRY-EXCLUSIVE POWERBOOST
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 207 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Model | FPT F5BFL413B |
| Fuel Type | Diesel |
| Gross HP | 110 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Backhoe Dig Depth | 18' |
| Backhoe lift Capacity | 2837-7203 lb |
| Breakout Force | 10873 lb |
| Travel Speed | 25 mph |
| Dump Angle @ Max Height | 45 degrees |
| Lift Capacity to Full Height | 8425 lb |
| Driveline | 4WD |
| Dimensions & Weight | |
|---|---|
| Dump Reach at Max Height | 27 in |
| Height to Bucket Hinge Pin | 11' 6" |
| Height with Operator Cab | 8' 11" |
| Length | 23' 4" |
| Operating Height | 13' 11" |
| Operating Weight | 20760 lb |
| Wheel base | 84.5 in |
| Width | 102 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 32.75 gal |
| Fuel Tank | 35 gal |
| Transmission | |
|---|---|
| Transmission | Power Shuttle |
| Transmission Range | 4F/4R |
| Make/Model | |
|---|---|
| Model | 580SN WT |
| Type | Backhoe |
| Product Dimensions & Weight | |
|---|---|
| Length | 280.00 in |
| Width | 102.00 in |
| Height | 107.00 in |
| Weight | 20760.00 lbs |
