Case Construction 580SV Construction King Center Pivot Backhoe Loader

Case Construction 580 SV side shift.png

Product Description

Case Construction 580SV center pivot.png

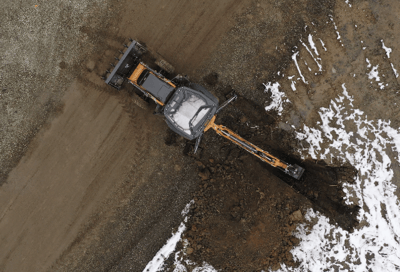

MEET THE 580SV CENTER PIVOT BACKHOE

You can be a crew of one with the CASE 580SV Construction King Center Pivot Backhoe Loader. After all, this backhoe loader can carry your entire workload with a single operator and a single machine. It starts with a 97 hp engine eager to bust, dig or haul. There’s a traditional center pivoting boom. The tool carrier linkage is ideal for those who use the loader end as a primary material handler for tasks like loading pallets or moving pipes. And with countless attachment options, this can be the ultimate jobsite conqueror.

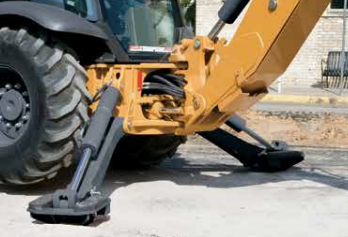

CENTER PIVOT DESIGN

Case Construction Center Pivot.png
The standard center pivot design, with radial stabilizer legs, provides a wider stance for enhanced stability when moving material or lifting loads to the side. Additionally, the simplicity of the center pivot design reduces ownership, operating, and maintenance costs compared to more complex side-shift systems.

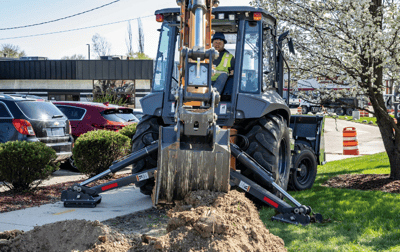

OPTIONAL EQUIPEMENT

Case Construction backhoes.png
Enhance the Case Construction 580 SV Center Pivot Backhoe's capabilities with the optional Extendahoe, which increases your digging depth for tackling more demanding tasks. Additionally, the optional Ride Control feature improves stability and operator comfort, ensuring smoother operation even on rough terrain.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS
Engine
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT F5BFL413B
Fuel Type
Diesel
Gross HP
97 hp
No. Of Cylinders
4
Performance
Backhoe Dig Depth
14' 5"
Backhoe lift Capacity
3228-5962 lb
Breakout Force
14711 lb
Travel Speed
22.5 mph
Dump Angle @ Max Height
47 degrees
Lift Capacity to Full Height
7606 lb
Driveline
4WD
Dimensions & Weight
Dump Reach at Max Height
33 in
Height to Bucket Hinge Pin
11' 1"
Height with Operator Cab
9' 5"
Length
23' 7"
Operating Height
13' 11"
Operating Weight
18717-19600 lb
Wheel base
86 in
Width
98 in
Capacities
Hydraulic Tank
37 gal
Fuel Tank
34.6 gal
Transmission
Transmission
Power Shuttle
Transmission Range
4F/4R
Make/Model
Model
580SV CP
Type
Backhoe
Product Dimensions & Weight
Length
283.00 in
Width
98.00 in
Height
156.00 in
Weight
19600.00 lbs
