Case Construction 580SV Construction King Side Shift Backhoe Loader

Case Construction 580 SV side shift.png

Product Description

Case Construction 580SV side shift.png

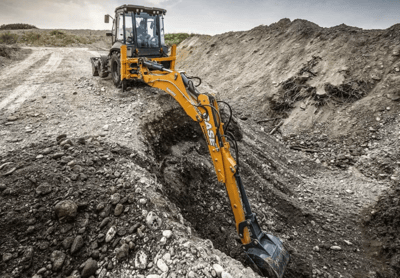

MEET THE 580SV SIDE SHIFT BACKHOE

This 580SV Construction King Side Shift Backhoe Loader takes legendary CASE backhoe capabilities and puts them smack dab into confined spaces and next to structures. That’s because this model features a hydraulic side shift boom and vertical outriggers that let the machine get busy when snugged up against a building or along a tight roadway. It also lets operators dig rectangular trenches without having to reposition. The boom is curved, offering an outstanding view down to the bucket. And with a strapping 97 hp engine, responsive transmission and tool carrier linkage, you’re staring at a backhoe that’s all business.

OPERATOR'S ENVIRONMENT

Case Construction 580SV cab.png
The operator environment features a ROPS/FOPS certified protective cab equipped with heating, A/C, defroster, and a Bluetooth radio, ensuring comfort and safety in all conditions. Inside, you'll find a mechanical suspension deluxe seat along with intuitive controls and Case exclusive technology.

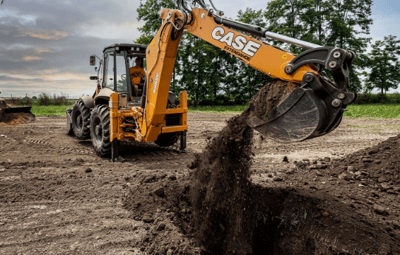

SIDE SHIFT DESIGN

Case Construction 580SV SS.png
The Case 580SV Side Shift Backhoe features a compact footprint with vertical stabilizers, enabling easy access to confined spaces and closer proximity to objects. This design also offers improved visibility, better roading balance and ride quality, and reduces the need for repositioning when working on both sides of an object.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS
Engine
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT F5BFL413B
Fuel Type
Diesel
Gross HP
97 hp
No. Of Cylinders
4
Performance
Backhoe Dig Depth
14' 5"
Backhoe lift Capacity
3228-5962 lb
Breakout Force
14711 lb
Travel Speed
22.5 mph
Dump Angle @ Max Height
47 degrees
Lift Capacity to Full Height
7606 lb
Driveline
4WD
Dimensions & Weight
Dump Reach at Max Height
32 in
Height to Bucket Hinge Pin
11' 1"
Height with Operator Cab
9' 5"
Length
19' 3"
Operating Height
13' 11"
Operating Weight
19445-20590 lb
Wheel base
86 in
Width
94 in
Capacities
Hydraulic Tank
37 gal
Fuel Tank
34.6 gal
Transmission
Transmission
Power Shuttle
Transmission Range
4F/4R
Make/Model
Model
580SV SS
Type
Backhoe
Product Dimensions & Weight
Length
231.00 in
Width
94.00 in
Height
154.00 in
Weight
20590.00 lbs
