Case Construction 590 Super N Backhoe Loader

Case Construction 590 Super N

Product Description

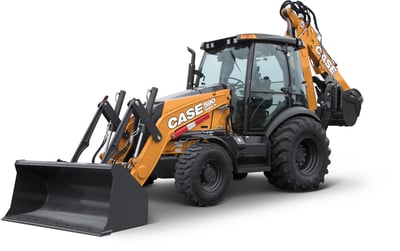

Case Construction 590 Super N

MEET THE 590 SUPER N BACKHOE LOADER

Want an 8-ton excavator that can go 25 mph? Try out the Tier 4 Final 590 Super N backhoe loader. The backhoe delivers breakout of nearly 16,000 lb. as well as a digging depth of up to 20 feet and a lifting capacity of more than 4,100 lb. The heavy-duty loader gets it done with breakout forces of nearly 13,700 lb. and with the responsive PowerDrive transmission, you have more speed and performance at your control. The 590SN comes standard with PowerLift, ProControl swing dampening, ECO Mode, SiteWatch Telematics and the breakthrough PowerBoost feature to help tear through tough ground.

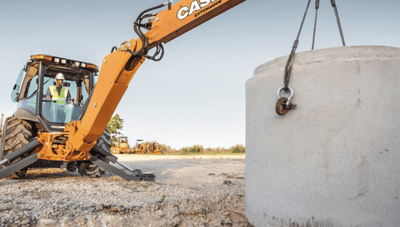

UPWARD MUSCLE

Case Construction 590 Super N powerlift.png
The push-button PowerLift backhoe feature unleashes the industry’s best lifting capacity. When activated, additional hydraulic power is channeled to the backhoe, giving these machines lifting strength and precision comparable to an 8-ton excavator.

SITEWATCH TELEMATICS

Case Construction sitewatch.png
CASE SiteWatch telematics empowers equipment owners to make informed decisions with real-time data. The system features an enhanced dashboard, intuitive navigation, and new overview sections that highlight critical information for easy access.

Specs

Additional Specs
Cab Enclosure
Optional
Operator Station
ROPS
Engine
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT F5BFL413A
Fuel Type
Diesel
Gross HP
110 hp
No. Of Cylinders
4
Performance
Backhoe Dig Depth
19' 6"
Backhoe lift Capacity
3565-7953 lb
Breakout Force
12776 lb
Travel Speed
25 mph
Dump Angle @ Max Height
45 degrees
Lift Capacity to Full Height
8202 lb
Driveline
4WD
Dimensions & Weight
Dump Reach at Max Height
29.2 in
Height to Bucket Hinge Pin
11' 6"
Height with Operator Cab
8' 11"
Length
23' 10"
Operating Height
13' 11"
Operating Weight
21325 lb
Wheel base
84 in
Width
93 in
Capacities
Hydraulic Tank
34.5 gal
Fuel Tank
35 gal
Transmission
Transmission
Power Shuttle
Transmission Range
4F/4R
Make/Model
Model
590SN
Type
Backhoe
Product Dimensions & Weight
Length
286.00 in
Width
93.00 in
Height
139.00 in
Weight
19307.00 lbs
