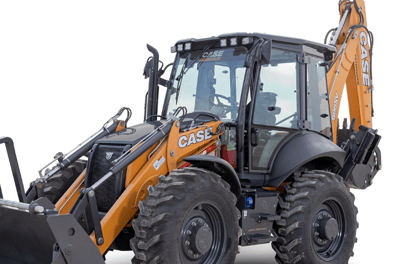

Case Construction 695SV Construction King Center Pivot Backhoe Loader

Case Construction 695 SV Center Pivot studio.png

Product Description

Case Construction 695SV Center Pivot.png

695SV CENTER PIVOT BACKHOE LOADER

The new CASE 695SV Construction King Center Pivot Backhoe Loader is a whopping 21,540 lbs. of pure digging, loading, pushing, trenching and drilling might. The first thing to jump out at you is the 4 equal-sized tires. They’re complemented by 4WD and 4-wheel steer, meaning it can go wherever it wants. With the tool carrier loader arm, it’s adept at truck and general loading, so you don’t have to bring the wheel loader along. The PowerShift transmission comes standard. There’s a traditional center-pivoting boom setup. And is decked out with a roomy cab. Because if you’re gonna dig, dig big.

CENTER PIVOT DESIGN

Case Construction Center Pivot.png
The standard center pivot design, combined with radial stabilizer legs, provides a wider stance for enhanced stability when moving material or lifting loads to the side. Additionally, the simplicity of the center pivot design reduces ownership, operating, and maintenance costs compared to more complex side-shift systems.

FUEL EFFICIENCY

Case Construction Eco Mode.png
ECO Mode, auto-idle and auto-shutdown features on these backhoes help minimize fuel consumption and operating costs while still ensuring the machine provides full power.

Specs

Additional Specs
Cab Enclosure
Standard
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT F5BFL413A
Fuel Type
Diesel
Gross HP
110 hp
No. Of Cylinders
4
Performance
Backhoe Dig Depth
15' 4"
Backhoe lift Capacity
2837-5015 lb
Breakout Force
12358 lb
Travel Speed
26.3 mph
Dump Angle @ Max Height
55 degrees
Lift Capacity to Full Height
6779 lb
Driveline
4WD
Dimensions & Weight
Dump Reach at Max Height
23 in
Height to Bucket Hinge Pin
11' 5"
Height with Operator Cab
9' 9"
Length
23' 11"
Operating Height
14' 9"
Operating Weight
19930 lb
Wheel base
87 in
Width
98 in
Capacities
Hydraulic Tank
37 gal
Fuel Tank
34.9 gal
Transmission
Transmission
Powershift
Transmission Range
4F/3R
Make/Model
Model
695SV CP
Type
Backhoe
Product Dimensions & Weight
Length
287.00 in
Width
98.00 in
Height
159.00 in
Weight
19930.00 lbs
