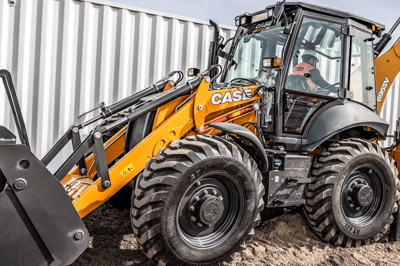

Case Construction 695SV Construction King Side Shift Backhoe Loader

Case Construction 695SV Side Shift.png

Product Description

Case Construction 695SV SS.png

695SV SIDE SHIFT BACKHOE LOADER

Here’s a new machine that’s all about doing more. It’s the CASE 695SV Construction King Side Shift Backhoe Loader. Start with the side shift configuration. It’s the answer when digging close to a structure. It can also dig a rectangular trench without needing to move. Huge time saver. The 695SV also features a tool carrier loader arm that lets it do double duty as a wheel loader, meaning one less machine to bring with. It gets traction in tough places with its 4WD, 4-wheel steer and 4 equal-sized tires. Plus, the features are plentiful – smooth PowerShift transmission, pilot backhoe controls and more. Because no job ever called for less.

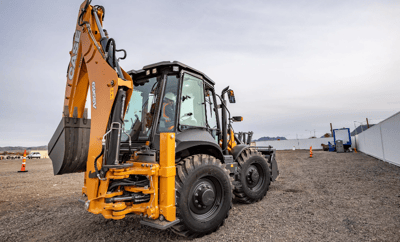

SIDE SHIFT DESIGN

Case Construction 695SV Side Shift.png
The Case 695SV side shift backhoe loader features a compact footprint with vertical stabilizers, enabling easy access to confined spaces and closer proximity to objects. This design also offers improved visibility, better roading balance and ride quality, and reduces the need for repositioning when working on both sides of an object.

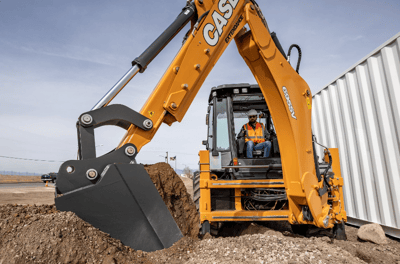

PROCONTROL SYSTEM

Case Construction 695SV backhoe.png
When going back to the trench or swinging the backhoe from side to side, ProControl swing dampening system stops the boom when and where you want. No wiggle. No rebound. No waiting for it to set. Just precise, responsive backhoe control.

Specs

Additional Specs
Cab Enclosure
Standard
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
207 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT F5BFL413A
Fuel Type
Diesel
Gross HP
110 hp
No. Of Cylinders
4
Performance
Backhoe Dig Depth
15' 4"
Backhoe lift Capacity
2806-5015 lb
Breakout Force
12358 lb
Travel Speed
26.3 mph
Dump Angle @ Max Height
55 degrees
Lift Capacity to Full Height
6779 lb
Driveline
4WD
Dimensions & Weight
Dump Reach at Max Height
23 in
Height to Bucket Hinge Pin
11' 5"
Height with Operator Cab
9' 9"
Length
19' 5"
Operating Height
14' 9"
Operating Weight
22245 lb
Wheel base
87 in
Width
98 in
Capacities
Hydraulic Tank
37 gal
Fuel Tank
34.6 gal
Transmission
Transmission
Powershift
Transmission Range
4F/3R
Make/Model
Model
695SV SS
Type
Backhoe
Product Dimensions & Weight
Length
233.00 in
Width
98.00 in
Height
158.00 in
Weight
22245.00 lbs
