Product Description

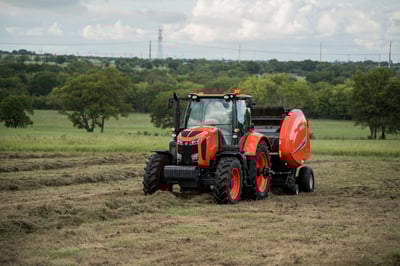

MEET THE BV4580 PREM/PREMNET BALER
Designed to produce high quality and high density 5-ft x 6-ft bales, Kubota’s BV4580 models are equipped to handle all types of crops and can take on the most demanding field conditions. Along with proven durable design, Kubota's 5-ft x 6-ft balers offer a variety of hard-working standard features, including silage capability. The heavy duty 86-inch working width and low profile design diminish crop loss and increase your hay yields.
Specs
Additional Specs | |
---|---|
Minimum PTO HP Required | 70 hp |
Performance | |
---|---|
Driveline | Pull-Type |
PTO RPM | Wide angle/540 |
Dimensions & Weight | |
---|---|
Height | 112 in |
Length | 176 in |
Width | 116 in |
Chamber | |
---|---|
Bale Formation | 8 belts + 3 rollers |
Bale Ramp | Standard |
Diameter Max in. | 71 in |
Diameter Min in. | 24 in |
Types of Belts | Mato Plate |
Pickup | |
---|---|
Flare to Flare Pickup | 86 in |
Lift | Hydraulic |
Lift Protection | Radial Clutch |
Number of Tine Rows | 160 |
Pneumatic Gauge Wheel | Standard |
Tine Spacing in. | 2.36 in |
Windguard | Roller windguard |
Working Width in. | 86 in |
Seeding Specs | |
---|---|
Monitor | Focus |
Make/Model | |
---|---|
Model | BV4580 |
Type | Round Baler |
Tying System | |
---|---|
Twine Type | Double arm, N/A |
Product Dimensions & Weight | |
---|---|
Length | 176.00 in |
Width | 116.00 in |
Height | 112.00 in |
Weight | 7275.00 lbs |
