New
Kubota BV5160 Baler
New
Kubota BV5160 Baler
Model: BV5160
- 47" Bale Width
- 86" Working Width
- Supercut-14 Knife Rotor
Product Description

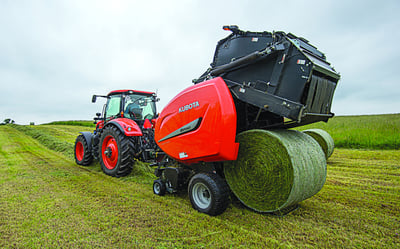

KUBOTA BV5160 BALER
The Kubota BV5160 balers is fully ISO ready and comes standard with a 14 knife cutting system. This baler has been designed with silage in mind, but can handle all types of crops and conditions. The unique bale chamber design ensures the least amount of air in your silage bales, which increases your silage quality and bale density!
INTELLIGENT DENSITY 3D

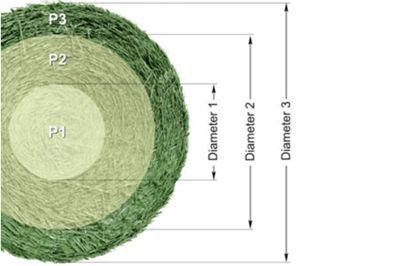

The Intelligent Density 3D bale chamber offers a combination of 3 rollers and 5 endless belts, giving it the ability to set the density of the bale in three different zones. The two aggressive front rollers that come in contact with the crop are constantly cleaned by scrapers and are designed to perform well in wet silage. They ensure instant and efficient bale start with immediate bale formation in all crop conditions.
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 75 hp |
| Performance | |
|---|---|
| Driveline | Pull-Type |
| PTO RPM | 540CV |
| Chamber | |
|---|---|
| Bale Formation | 5 belts + 3 rollers |
| Bale Ramp | Standard |
| Diameter Max in. | 65 in |
| Diameter Min in. | 24 in |
| Types of Belts | Endless |
| Pickup | |
|---|---|
| Flare to Flare Pickup | 86 in |
| Lift | Hydraulic |
| Lift Protection | Radial Clutch |
| Number of Tine Rows | 5 |
| Pneumatic Gauge Wheel | Standard |
| Tine Spacing in. | 2.36 in |
| Windguard | Roller windguard |
| Working Width in. | 86 in |
| Seeding Specs | |
|---|---|
| Monitor | TellusGO |
| Make/Model | |
|---|---|
| Model | BV5160 |
| Type | Round Baler |
| Tying System | |
|---|---|
| Twine Type | Doule arm |
| Product Dimensions & Weight | |
|---|---|
| Length | 176.00 in |
| Width | 99.00 in |
| Height | 106.00 in |
| Weight | 7165.00 lbs |
