Kubota BV5200 Baler
New
Kubota BV5200 Baler
Model: BV5200
- 47-inch bale width
- 86-inch working width
- SuperCut-14 knives
Product Description
MEET THE BV5200 BALER
The Kubota BV5200 SC-14 series of balers are fully ISOBUS ready and come standard with a rotary intake 14 knife precutting system. These balers have been designed with silage in mind, but can handle all types of crops and conditions. The unique bale chamber design ensures the least amount of air in your silage bales, which increases your silage quality and bale density! Combine that with a hydraulic drop floor, endless belts, auto chain oilers, and the optional moisture sensor and the BV5200 is a great choice for your high capacity operation!

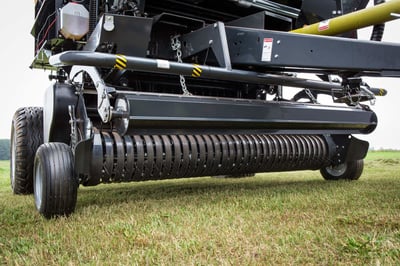

HIGH PERFORMANCE PICK-UP AND INTAKE
On Kubota's BV5200, the load on the tine bars is minimized by using two intermediate supports and two separate cam tracks located at either end of ther pick-up. Slip clutch protection comes standard. The working width on the BV5200 is 86".
Specs
| Additional Specs | |
|---|---|
| Minimum PTO HP Required | 70 hp |
| Performance | |
|---|---|
| Driveline | Pull-Type |
| PTO RPM | 540CV |
| Chamber | |
|---|---|
| Bale Formation | 5 belts + 3 rollers |
| Bale Ramp | Standard |
| Diameter Max in. | 79 in |
| Diameter Min in. | 24 in |
| Types of Belts | Endless |
| Pickup | |
|---|---|
| Flare to Flare Pickup | 86 in |
| Lift | Hydraulic |
| Lift Protection | Radial Clutch |
| Number of Tine Rows | 5 |
| Pneumatic Gauge Wheel | Standard |
| Tine Spacing in. | 2.36 in |
| Windguard | Roller windguard |
| Working Width in. | 86 in |
| Seeding Specs | |
|---|---|
| Monitor | TellusGO |
| Make/Model | |
|---|---|
| Model | BV5200 |
| Type | Round Baler |
| Tying System | |
|---|---|
| Twine Type | Double arm |
| Product Dimensions & Weight | |
|---|---|
| Length | 187.00 in |
| Width | 99.00 in |
| Height | 111.00 in |
| Weight | 7275.00 lbs |
