New Holland BigBaler 330 Plus CropCutter Packer Cutter

N H B B330 Plus

Product Description

New Holland BigBaler 33 PLUS cropcutter-packer.png

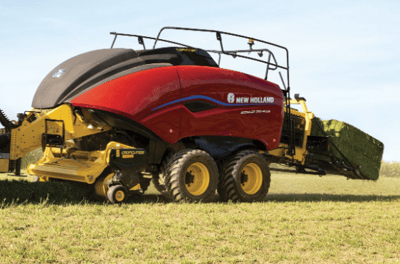

MEET THE BIGBALER 330 PLUS CROPCUTTER/PACKER BALER

This BigBaler model utilizes the CropCutter option with Packer Cutter System providing tighter packing, better fermentation in silage bales, and more anerobic bacteria activity. It's flare-to-flare MaxiSweep pick-up path of 77.5-inches and adjustable spring flotation aid in maximum crop collection. The high-speed plunger hammers at 48 strokes per minute constructing bales fast.

SUPERIOR KNOTTING

BigBaler bale chamber.png
The Loop Master knotter system makes two knots per bale: the first finishes the bale, while the second, a loop-style knot, starts the new bale. This loop-style knot is 37% stronger than a standard knot, boosting twine tensile strength by up to 26% and reducing breakages. With twine fed from the top and bottom, the system eliminates friction during bale formation, minimizing wear and stress on knotter components.

CROP PROCESSING

New Holland BigBaler packer.png

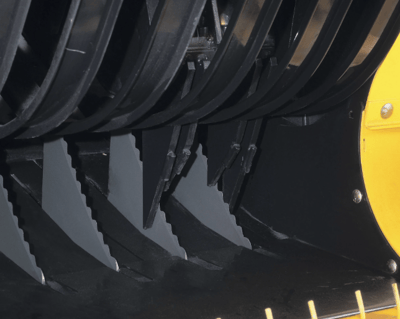

The packer cutter option on the BigBaler 330 PLUS uses three packer forks and six double tines to feed the crop through serrated knives into the precompression chamber, allowing cut lengths as short as 4.5 in. (114.3 mm). Its staggered tine lengths prevent crop damage, while a durable packer slip clutch and crankshaft drive ensure long life, reliable performance.

DENSITY CONTROL

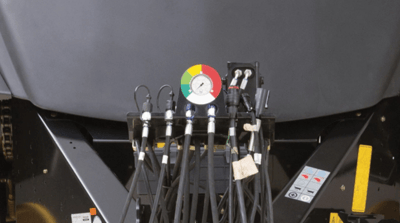

The three-sided density control system monitors plunger load and sensor readings, automatically adjusting hydraulic pressure to maintain uniform density, with a proportional valve ensuring stable regulation at max pressure. In case of electronics failure, manual adjustments can be made.

New Holland BigBaler 330 density control.png



Specs

View Full Specs Here

Additional Specs
Brakes
Optional hydraulic brakes
IntelliView III Touch Screen
Optional
IntelliView IV Touch Screen
Optional
Minimum PTO HP Required
116 hp
Performance
Cutting Length
4.5 in
Dimensions & Weight
Length Chute Closed in. (mm)
328.5 in
Flywheel Weight
538 lbs
Chamber
Bale Width
31.5 in
Pickup
Flare to Flare Pickup
77.5 in
Tine to Tine Pickup
70.2 in
Flotation
Adjustable spring
Pick Up Protection
Standard
Pick-up
MaxiSweep Pick-up
Baler Specs
Bale Height
35.4 in
Bale Maximum Length
131 in
Bale Width
31.5 in
CropCutter System
Standard
Gauge wheels/castering gauge wheels
Standard, Optional: Castering gauge wheels
Knife Protection
Individual springs
Large Wheel Tandem Axel
Optional
Length of stroke in. (mm)
28 in
Number of Knives
6
Single Axle
Standard
Speed Strokes/min
48
Tandem Axle
Optional
Feeding
Feeding System
Packer Feeding System
Feeder
3 packer forks/6 double tines
Make/Model
Model
BigBaler 330 Plus CropCutter Packer Cutter
Type
Square Baler, Big Baler
Tying System
Number of Twines
4
Knotter Fan Number
2
Knotter Fan Type
Electric
Knot Type
Double knot
Knotter Lubrication
Grease/Autolube
Twine Ball Capacity
32
Product Dimensions & Weight
Length
328.50 in
Width
117.80 in
Height
131.70 in
Weight
24251.00 lbs
