New Holland BigBaler 330 Plus CropCutter Rotor Cutter

N H B B330 Plus

Product Description

New Holland BigBaler 330 Plus CropCutter Rotor.png

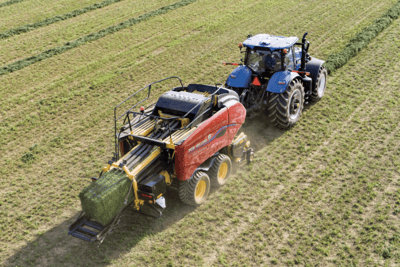

MEET THE BIGBALER 330 PLUS CROPCUTTER ROTOR CUTTER BALER

Get more out of your baler. The BigBaler 330 Plus CropCutter Rotor Cutter system gives you the widest range of chop lengths to match specific forage requirements. Minimize twine popping with the Loop Master Knotter Advantage and get a softer drop with this 31.5 inch longer chamber. Keep your baler where it belongs, in the field with efficient service features that include automatic oiling and greasing, wide-opening shields for easy access, color-coded hydraulics and yellow paint to improve visibility and safety.

CROPCUTTER ROTOR CUTTER SYSTEM

New Holland BigBaler CropCutter Processing.png
The CropCutter rotor cutter system offers short cut and medium cut configurations for crop lengths of 1.5 in. and 3 in., respectively. Its “W”-shaped rotor pattern ensures even cutting force, smooth crop flow, increased flake density and capacity, and enhanced durability.

DENSITY CONTROL

New Holland BigBaler 330 density control.png
The three-sided density control system monitors plunger load and sensor readings, automatically adjusting hydraulic pressure to maintain uniform density, with a proportional valve ensuring stable regulation at max pressure. In case of electronics failure, manual adjustments can be made.

Specs

View Full Specs Here

Additional Specs
Brakes
Optional hydraulic brakes
IntelliView III Touch Screen
Optional
IntelliView IV Touch Screen
Optional
Minimum PTO HP Required
136 hp
Performance
Cutting Length
1.5 or 3 in
Dimensions & Weight
Length Chute Closed in. (mm)
328.5 in
Flywheel Weight
538 lbs
Chamber
Bale Width
31.5 in
Pickup
Flare to Flare Pickup
77.5 in
Tine to Tine Pickup
70.9 in
Flotation
Adjustable spring
Pick Up Protection
Standard
Pick-up
MaxiSweep Pick-up
Baler Specs
Bale Height
35.4 in
Bale Maximum Length
131 in
Bale Width
31.5 in
CropCutter System
Standard
Gauge wheels/castering gauge wheels
Standard, Optional: Castering gauge wheels
Knife Protection
Individual springs
Large Wheel Tandem Axel
Optional
Length of stroke in. (mm)
28 in
Number of Knives
9 or 19
Rotor Protection
Cut-out clutch
Single Axle
Standard
Speed Strokes/min
48
Tandem Axle
Optional
Feeding
Feeding System
Rotor Feeder System
Feeder
Rotor width: 31.5 in
Make/Model
Model
BigBaler 330 Plus CropCutter Rotor Cutter
Type
Square Baler, Big Baler
Tying System
Number of Twines
4
Knotter Fan Number
2
Knotter Fan Type
Electric
Knot Type
Double knot
Knotter Lubrication
Grease/Autolube
Twine Ball Capacity
32
Product Dimensions & Weight
Length
328.50 in
Width
102.70 in
Height
131.70 in
Weight
20723.00 lbs
