New Holland BigBaler 330 Plus

New H B B330 Plus

Product Description

New Holland BigBaler 330 Plus.png

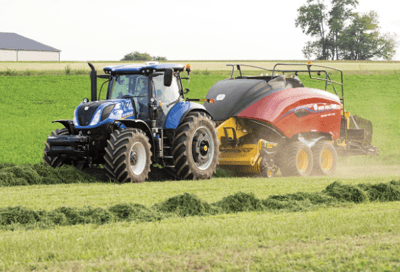

MEET THE BIGBALER 330 PLUS BALER

The BigBaler 330 Plus has a flare-to-flare MaxiSweep pick-up path of 77.5-inches and a feeding system consisting of 2 packer forks and 6 single tines. The high-speed plunger hammers at 48 strokes per minute constructing bales fast. In one fluid motion needles deliver the twine to complete the finished bale and on the return stroke, tie the first knot for the new bale. Lastly, the BigBaler Plus Series features a bale chamber that's 31.5 inches longer than prior balers providing a softer bale drop and minimizing twine popping.

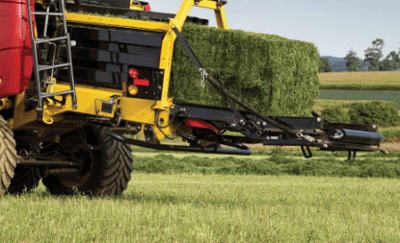

BALE FORMATION

New Holland BigBaler 330 chamber.png
To deliver consistent bale density and shape, the bale chamber is 31.5 inches (800 mm) longer than previous BigBalers, creating bales that are 10% denser. The larger chamber allows for softer bale drop for less risk of twine popping. That means you can operate the knotter closer to twine knot strength without breakage.

DENSITY CONTROL

New Holland BigBaler 330 density control.png
The three-sided density control system monitors plunger load and sensor readings, automatically adjusting hydraulic pressure to maintain uniform density, with a proportional valve ensuring stable regulation at max pressure. In case of electronics failure, manual adjustments can be made.

Specs

View Full Specs Here

Additional Specs
Brakes
Optional hydraulic brakes
IntelliView III Touch Screen
Optional
IntelliView IV Touch Screen
Optional
Minimum PTO HP Required
109 hp
Dimensions & Weight
Length Chute Closed in. (mm)
328.5 in
Flywheel Weight
538 lbs
Chamber
Bale Width
31.5 in
Pickup
Flare to Flare Pickup
77.5 in
Tine to Tine Pickup
70.2 in
Flotation
Adjustable spring
Pick Up Protection
Standard
Pick-up
MaxiSweep Pick-up
Baler Specs
Bale Height
35.4 in
Bale Maximum Length
131 in
Bale Width
31.5 in
CropCutter System
N/A
Gauge wheels/castering gauge wheels
Standard, Optional: Castering gauge wheels
Large Wheel Tandem Axel
Optional
Length of stroke in. (mm)
28 in
Single Axle
Standard
Speed Strokes/min
48
Tandem Axle
Optional
Feeding
Feeding System
Packer Feeding System
Feeder
2 packer froks/6 single tines
Make/Model
Model
BigBaler 330 Plus
Type
Square Baler, Big Baler
Tying System
Number of Twines
4
Knotter Fan Number
2
Knotter Fan Type
Electric
Knot Type
Double knot
Knotter Lubrication
Grease/Autolube
Twine Ball Capacity
32
Product Dimensions & Weight
Length
328.50 in
Width
102.70 in
Height
131.70 in
Weight
19841.00 lbs
