New Holland BigBaler 340 High Density CropCutter Rotor Cutter

N H B B340 H D Rotor

Product Description

New Holland BigBaler 340 baler.png

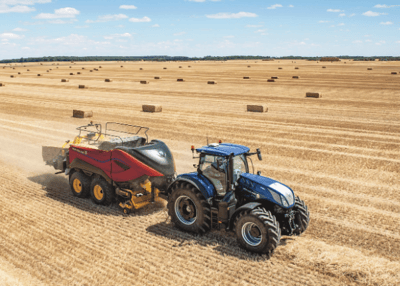

MEET THE BIGBALER 340 CROPCUTTER BALER

The added advantage of the BigBaler 340 CropCutter Rotor Cutter system is the ability to cut crop as it’s fed into the baler delivering shorter particle lengths, which results in tighter material packing and greater bale density. Combining the CropCutter Rotor Cutter system with the five-bar MaxiSweep pick-up ensures high capacity feeding. A short, narrow tongue profile provides outstanding baler maneuverability at headlands and improved visibility of the pickup. 37% stronger knots means less breakage thanks to the Loop Master knotter system. This all-out efficient, piece of equipment was geared for robust bailing.

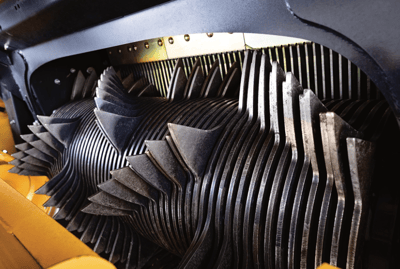

CROPCUTTER FEEDING SYSTEM

New Holland BigBaler 340 Cropcutter.png
Standard on the BigBaler 340 CropCutter is the high-performance CropCutter rotor cutting and feeding system. It directs material into the pre-compression chamber, where the stuffer swiftly moves the perfect flake into position once the desired density is achieved. In tough baling conditions, the rotor floor hydraulically drops to release crop pressure for easier restarting.

STRONGER KNOTS, LESS BREAKAGE

New Holland BigBaler 340 bales.png
The BigBaler 340 CropCutter baler features the Loop Master knotter system, which creates a 37% stronger second knot, boosting overall twine tensile strength by up to 26% and reducing breakages. This system also eliminates twine offcuts, ensuring cleaner fields and less contaminated feed. Additionally, the 36-twine spool capacity minimizes the need for frequent refills.

TOP-OF-THE-LINE FEATURES

  • 5-bar MaxiSweep pick-up—wide swath pick-up
  • SmartFill II system—ensures uniform, consistently good-looking bales
  • ISOBUS compatible
  • Hydraulic suspension system
  • 13 feet, 3 inch bale chamber
New Holland BigBaler 340 sideview.png

Specs

View Full Specs Here

Additional Specs
IntelliView IV Touch Screen
Optional
Minimum PTO HP Required
250-270 hp
Performance
Bale Min Length in.
39 in
Cutting Length
1.5 in
Dimensions & Weight
Length Chute Closed in. (mm)
352 in
Flywheel Weight
714 lbs
Chamber
Bale Width
47 in
Pickup
Flotation
Adjustable spring
Pick Up Protection
Standard
Pick-up
MaxiSweep Pick-up
Baler Specs
Bale Height
35 in
Bale Maximum Length
118 in
Bale Width
47 in
CropCutter System
Standard
Hydraulic Suspension
Standard
ISOBUS Compatible
Standard
Knife Protection
Standard
Large Wheel Tandem Axel
Standard
Length of stroke in. (mm)
29 in
Number of Knives
29
Rotor Protection
Standard
Speed Strokes/min
48
Tandem Axle
Standard
Feeding
Feeding System
N/A
Make/Model
Model
BigBaler 340 High Density CropCutter Rotor Cutter
Type
Square Baler, Big Baler
Tying System
Number of Twines
6
Knotter Fan Number
3
Knotter Fan Type
Electric
Knot Type
Double knot
Knotter Lubrication
Grease/Autolube
Twine Ball Capacity
36 xl
Product Dimensions & Weight
Length
352.00 in
Width
118.00 in
Height
136.00 in
Weight
32188.00 lbs
