New Holland BigBaler 340 Plus

N H B B340 Plus

Product Description

New Holland BigBaler 340 bales.png

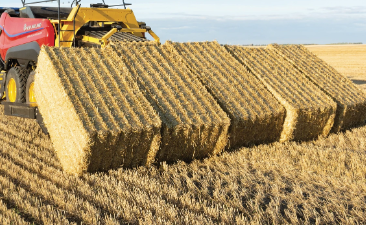

MEET THE BIGBALER 340 PLUS BALER

With a 48 stroke-per-minute gearbox speed and superior MaxiSweep™ pickup, New Holland BigBaler 340 Plus balers deliver high-density, well-shaped bales, and will help you substantially increase your baling capacity. Other features include an extended baler chamber for up to 10% higher bale density, SmartFill II system to ensure perfect flake formation, Loopmaster Knotting system minimizing popping twine, and partial or full bale eject system.

BALE DENSITY

New Holland BigBaler 330 density control.png
The three-sided density control system monitors plunger load and sensor readings, automatically adjusting hydraulic pressure to maintain uniform density, with a proportional valve ensuring stable regulation at max pressure. In case of electronics failure, manual adjustments can be made.

THE PERFRCT KNOT

BigBaler bale chamber.png
The Loop Master knotter system makes two knots per bale: the first finishes the bale, while the second, a loop-style knot, starts the new bale. This loop-style knot is 37% stronger than a standard knot, boosting twine tensile strength by up to 26% and reducing breakages. With twine fed from the top and bottom, the system eliminates friction during bale formation, minimizing wear and stress on knotter components.

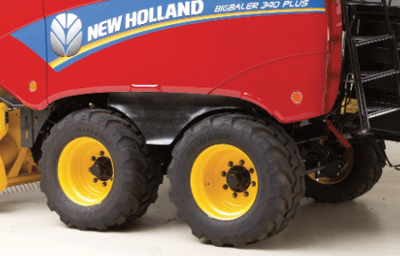

AXLE VARIATIONS

Three axle options are available: single axle, tandem axles with Auto-Steer, or large-wheeled tandem axles with Auto-Steer, all optional with hydraulic brakes. Auto-Steer provides a smoother ride and efficient turning, while the large-wheeled tandem axles reduce soil compaction and improve high-speed stability. All options ensure a transport width under 10 ft. (3.0 m) and offer a variety of tire choices.

New Holland BigBaler PLUS axle.png

Specs

View Full Specs Here

Additional Specs
Brakes
Optional hydraulic brakes
IntelliView III Touch Screen
Optional
IntelliView IV Touch Screen
Optional
Minimum PTO HP Required
129 hp
Dimensions & Weight
Length Chute Closed in. (mm)
328.5 in
Flywheel Weight
584 lbs
Chamber
Bale Width
47.2 in
Pickup
Flare to Flare Pickup
87.9 in
Tine to Tine Pickup
80.6 in
Flotation
Adjustable spring
Pick Up Protection
Standard
Pick-up
MaxiSweep Pick-up
Baler Specs
Bale Height
35.4 in
Bale Maximum Length
131 in
Bale Width
47.2 in
CropCutter System
N/A
Gauge wheels/castering gauge wheels
Standard, Optional: Castering gauge wheels
Large Wheel Tandem Axel
Optional
Length of stroke in. (mm)
28 in
Rotor Protection
N/A
Single Axle
Standard
Speed Strokes/min
48
Tandem Axle
Optional
Feeding
Feeding System
Packer Feeding System
Feeder
3 packer forks/9 single tines
Make/Model
Model
BigBaler 340 Plus
Type
Square Baler, Big Baler
Tying System
Number of Twines
6
Knotter Fan Number
3
Knotter Fan Type
Electric
Knot Type
Double knot
Knotter Lubrication
Grease/Autolube
Twine Ball Capacity
32
Product Dimensions & Weight
Length
328.50 in
Width
117.80 in
Height
131.70 in
Weight
22487.00 lbs
