Bobcat FP10.33 Forward Plate Compactor

Bobcat F P10.30

Product Description

Bobcat FP10.33 compactor.png

MEET THE FP10.33 COMPACTOR

The FP10.33 forward plate compactor, powered by a reliable Honda GX120 engine, provides robust power and low fuel consumption. With a compaction force of 2,360 pounds and a 13.4-inch working width, it efficiently handles granular soils, crushed aggregates, and hot mix asphalt. This versatile machine is ideal for confined spaces, asphalt paving, and light-to-medium duty earthwork tasks.

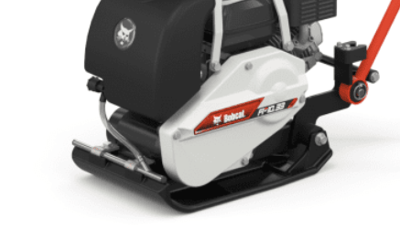

ONE-PIECE PLATE

Bobcat FP10.33 studio.png
Bobcat forward plate compactors feature a one-piece, cast base plate with no connection points that can weaken over time. Other brands weld or assemble components for their base plates.

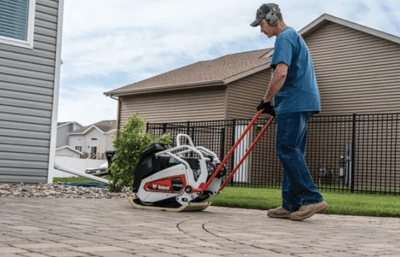

MINIMAL HAND-ARM VIBRATION

Bobcat FP15.40 soil.png
Bobcat forward plate compactors are designed to isolate plate vibrations from the operator’s handle, significantly reducing hand-arm vibration and fatigue. The handle also folds for convenient transport and storage.

Specs

Engine
Engine Make
Honda
Engine Model
GX 120
Fuel Type
Gas
Gross HP
3.5 hp
Performance
Travel Speed
0.8 mph
Ground Contact Length
13.4 in
Max Incline
20 degree
Dimensions & Weight
Gradeability
30%
Height
20 in
Length
26 in
Width
13 in
Compaction Forces
Vibration Frequency
100 hz
Centrifugal Force
2360 lbf
Surface Capacity
4689 ft²/h
Surface Pressure
13.5 psi
Hand-Arm Vibration On Handle
<36 ft/s²
Make/Model
Model
FP10.33
Type
Plate Compactor
