Bobcat FP15.40 Forward Plate Compactor

Bobcat F P15.40

Product Description

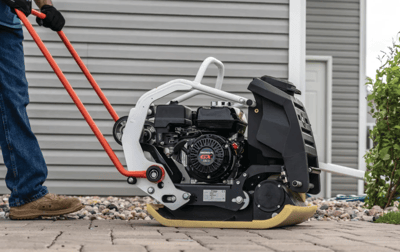

Bobcat FP15.40 engine.png

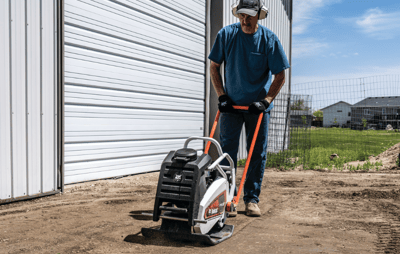

MEET THE FP15.40 COMPACTOR

The FP15.40 forward plate compactor features a durable Honda engine for easy starts, maximum power, and reduced fuel consumption. It is versatile for base and surface material compaction, with an optional toolless mat for use on paving stones without damage. The standard water tank and sprinkler system control dust and prevent asphalt buildup on the vibratory base plate.

ONE-PIECE PLATES

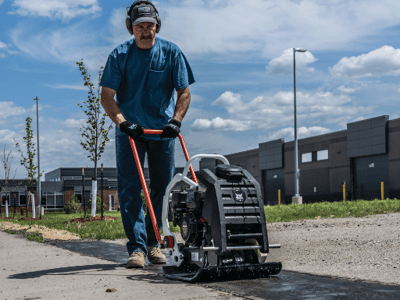

Bobcat FP15.40 forward compaction.png
Bobcat forward plate compactors feature a one-piece, cast base plate with no connection points that can weaken over time. Other brands weld or assemble components for their base plates.

MINIMAL HAND-ARM VIBRATION

Bobcat FP15.40 soil.png
Bobcat forward plate compactors are designed to isolate plate vibrations from the operator’s handle, significantly reducing hand-arm vibration and fatigue. The handle also folds for convenient transport and storage.

Specs

Engine
Engine Make
Honda
Engine Model
GX 120
Fuel Type
Gas
Gross HP
3.5 hp
Performance
Travel Speed
1 mph
Ground Contact Length
13.9 in
Max Incline
20 degree
Dimensions & Weight
Gradeability
30%
Height
26 in
Length
28 in
Width
16 in
Compaction Forces
Vibration Frequency
100 hz
Centrifugal Force
3372 lbf
Surface Capacity
697 ft²/h
Surface Pressure
15.5 psi
Hand-Arm Vibration On Handle
<8.2 ft/s²
Make/Model
Model
FP15.40
Type
Plate Compactor
Product Dimensions & Weight
Length
28.00 in
Width
16.00 in
Height
26.00 in
Weight
176.00 lbs
