Bobcat FP15.50 Forward Plate Compactor

Bobcat F P15.50

Product Description

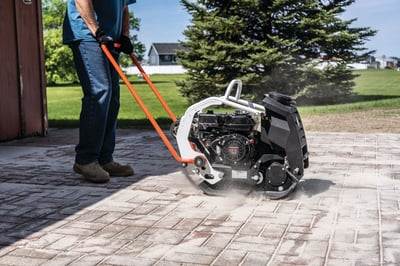

Bobcat 15.50 forward compactor.jpg

MEET THE FP15.50 COMPACTOR

The FP15.50 forward plate compactor delivers high-compaction results across various applications, including trenches and surface materials like sand, gravel, and asphalt. It features easy transport with optional toolless wheels and a central lift bar, and has a standard water tank and sprinkler system to control dust and prevent asphalt buildup. The one-piece cast base plate is designed for durability, while the optional toolless mat allows use on paving stones without damage.

ONE-PIECE PLATES

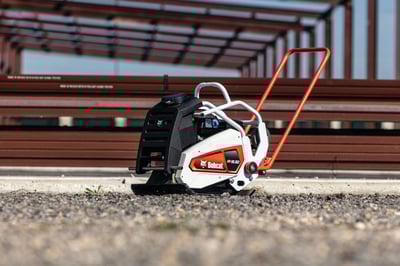

Bobcat 15.50 forward plate.png
Bobcat forward plate compactors feature a one-piece, cast base plate with no connection points that can weaken over time. Other brands weld or assemble components for their base plates.

MINIMAL HAND-ARM VIBRATION

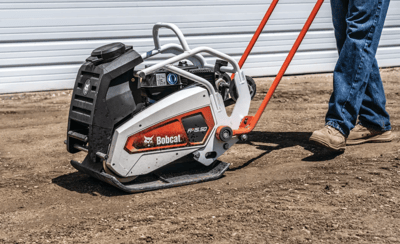

Bobcat 15.50 working.jpg
Bobcat forward plate compactors are designed to isolate plate vibrations from the operator’s handle, significantly reducing hand-arm vibration and fatigue. The handle also folds for convenient transport and storage.



Specs

Engine
Engine Make
Honda
Engine Model
GX 120
Fuel Type
Gas
Gross HP
3.5 hp
Performance
Travel Speed
0.9 mph
Ground Contact Length
13.9 in
Max Incline
20 degree
Dimensions & Weight
Gradeability
30%
Height
26 in
Length
28 in
Width
20 in
Compaction Forces
Vibration Frequency
100 hz
Centrifugal Force
3372 lbf
Surface Capacity
7750 ft²/h
Surface Pressure
12.3 psi
Hand-Arm Vibration On Handle
<8.2 ft/s²
Make/Model
Model
FP15.50
Type
Plate Compactor
Product Dimensions & Weight
Length
28.00 in
Width
20.00 in
Height
26.00 in
Weight
185.00 lbs
