Bobcat RP49.20D Reversible Plate Compactor

R P49.20 D

Product Description

R P30.50

MEET THE RP49.20D COMPACTOR

The RP49.20D, Bobcat's largest reversible plate compactor, boasts a powerful 8.8-hp Tier 4 diesel engine that ensures optimum compaction forces. Its hydraulic directional control allows for quick, precise directional changes, making it ideal for tight spaces and maximizing productivity with speeds among the fastest in its class. Additionally, the well-balanced base plate ensures efficient and easy compaction work, whether stationary or in continuous movement, providing a smooth experience for the operator.

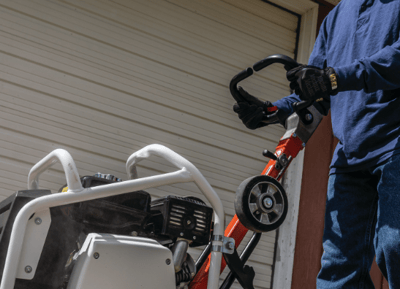

MINIMIZED HAND-ARM VIBRATION

Bobcat RP49.20D comfort.png
Bobcat forward plate compactors are designed to isolate plate vibrations from the operator’s handle, significantly reducing hand-arm vibration and fatigue. The handle also folds for convenient transport and storage.

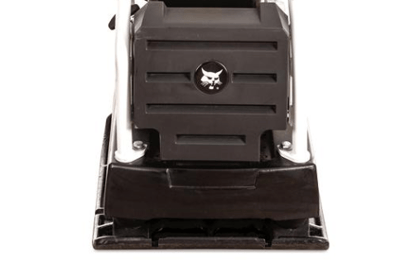

DIRECT POWER

Bobcat RP49.20D.png
Bobcat reversible plate compactors direct powerful vibratory energy from their plates to base materials, effectively moving particles closer together and eliminating air pockets for tight compaction. With a centrifugal force of 11,015 lbf., they excel in foundation work, trench compaction, and the compaction of sensitive surfaces.

Specs

Engine
Engine Make
Hatz
Engine Model
1B40
Fuel Type
Diesel
Gross HP
8.8 hp
Performance
Max Incline
25 degrees
Dimensions & Weight
Gradeability
30%
Height
32 in
Length
35 in
Width
18 in
Compaction Forces
Vibration Frequency
65 hz
Centrifugal Force
11015 lbf
Surface Capacity
10171 ft²/h
Surface Pressure
35 psi
Hand-Arm Vibration On Handle
<8.2 ft/s²
Make/Model
Model
RP49.20D
Type
Plate Compactor
