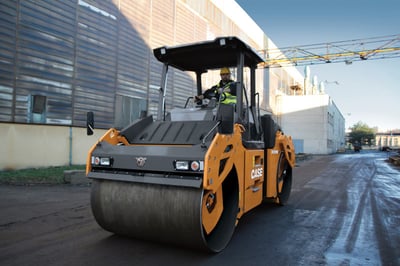

Case Construction DV209CD Asphalt Compactor
New
Case Construction DV209CD Asphalt Compactor
Model: DV209CD
- 100 horsepower
- 20,750 lb. operating weight
- 21,806 lbf. centrifugal force
Product Description
MEET THE DV209CD ASPHALT COMPACTOR
The DV209CD combination asphalt roller delivers 100% tractive effort and reliable compaction performance thanks to the CASE balanced drum design. The vibratory roller compacts with the front drum and delivers a smooth finish with the rear pneumatic tires. A combination of consistent performance along with 100HP, a hydrostatic drive transmission providing speeds up to 6.5-mph, a large 58.1-gallon fuel tank and multiple custom operator environment settings make long days more enjoyable.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 221 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Make | Deutz TCD 3.6 L4 |
| Fuel Type | Diesel |
| Gross HP | 100 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Travel Speed | 6.5 mph |
| Drum Vibration | Front only |
| Vibration System Design | Closed center |
| Water System | Pressurized water system |
| Dimensions & Weight | |
|---|---|
| Drum Diameter | 48 in |
| Drum Thickness | 0.9 in |
| Drum Width | 66 in |
| Operating Weight | 20750 lb |
| Wheel base | 137 in |
| Capacities | |
|---|---|
| Water Tank | 222 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | Reservoir: 15.9 gal |
| Compaction Forces | |
|---|---|
| Vibration Frequency | Low: 2760 vpm, High: 4020 vpm |
| Centrifugal Force | Low: 15737 lb, High: 21806 lb |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | DV209CD |
| Type | Asphalt Compactor |
| Product Dimensions & Weight | |
|---|---|
| Length | 185.00 in |
| Width | 71.00 in |
| Height | 118.00 in |
| Weight | 20750.00 lbs |
