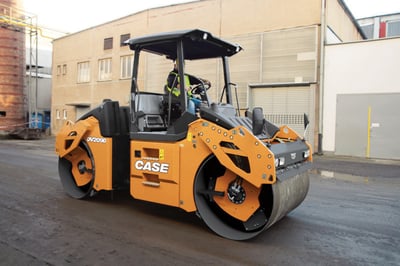

Case Construction DV209D Asphalt Compactor
New
Case Construction DV209D Asphalt Compactor
Model: DV209D
- 100 horsepower
- 21,080 lb. operating weight
- 18,884 lbf. centrifugal force
Product Description
MEET THE DV209D ASPHALT COMPACTOR
The DV209D double drum asphalt roller delivers 100% tractive effort and reliable compaction performance thanks to the balanced drum design. It offers a high-frequency option that reaches frequencies of up to 4,020 vpm (67 Hz). On top of that, the DV209D offers 100 HP, a step up from the E Series models, but has the same intuitive operator’s platform with an adjustable sliding/rotating seat, and a state-of-the-art steering wheel instrument cluster that makes operation easier than ever.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 221 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Make | Deutz TCD 3.6 L4 |
| Fuel Type | Diesel |
| Gross HP | 100 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Travel Speed | 6.5 mph |
| Drum Vibration | Front only, Rear only, Front and rear |
| Vibration System Design | Closed center |
| Water System | Pressurized water system |
| Dimensions & Weight | |
|---|---|
| Drum Diameter | 48 in |
| Drum Thickness | 0.9 in |
| Drum Width | 66 in |
| Operating Weight | 21080 lb |
| Wheel base | 137 in |
| Capacities | |
|---|---|
| Water Tank | 222 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | Reservoir: 15.9 gal |
| Compaction Forces | |
|---|---|
| Vibration Frequency | Low: 2520 vpm, High: 3300 vpm |
| Centrifugal Force | Low: 15737 lb, High: 18884 lb |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | DV209D |
| Type | Asphalt Compactor |
| Product Dimensions & Weight | |
|---|---|
| Length | 185.00 in |
| Width | 71.00 in |
| Height | 118.00 in |
| Weight | 21080.00 lbs |
