Product Description

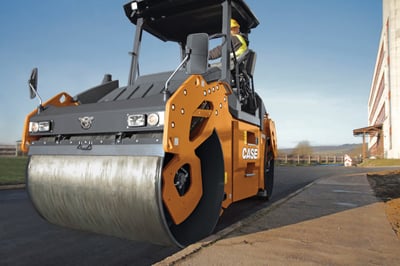

MEET THE DV210CD ASPHALT COMPACTOR
The DV210CD features a Tier 4 Final 100HP Deutz engine that meets emissions regulations for DOT projects. This engine works in combination with an updated cooling system and automatic idle-control to reduce fuel consumption by up to 15 percent compared to previous models. Its standard equipment includes a hydrostatic drive transmission producing speeds up to 6.5-mph, fixed ROPS/FOPS Canopy with optional cab with heat and ventilation combo or cab and air conditioning, pressurized water system that matches water pressure to the job at hand, and drum adjustability for either offset or inline positioning. The ability to offset the drums allows for a tighter turning radius , while both drums have a balanced design and a tapered edge to reduce tearing around curves and during transitions.
Specs
Additional Specs | |
---|---|
Cab Enclosure | Optional |
Operator Station | ROPS |
Engine | |
---|---|
Displacement | 221 cu in |
Emissions Tier (EPA) | Tier 4 |
Engine Make | Deutz TCD 3.6 L4 |
Fuel Type | Diesel |
Gross HP | 100 hp |
No. Of Cylinders | 4 |
Performance | |
---|---|
Travel Speed | 6.5 mph |
Drum Vibration | Front only |
Vibration System Design | Closed center |
Water System | Pressurized water system |
Dimensions & Weight | |
---|---|
Drum Diameter | 48 in |
Drum Thickness | 0.9 in |
Drum Width | 66 in |
Operating Weight | 22440 lb |
Wheel base | 137 in |
Capacities | |
---|---|
Water Tank | 222 gal |
Hydraulic System | |
---|---|
Hydraulic System | Reservoir: 16 gal |
Compaction Forces | |
---|---|
Vibration Frequency | Low: 2760 vpm, High: 4020 vpm |
Centrifugal Force | Low: 18434 lb, High: 4020 lb |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Make/Model | |
---|---|
Model | DV210CD |
Type | Asphalt Compactor |
Product Dimensions & Weight | |
---|---|
Length | 185.00 in |
Width | 71.00 in |
Height | 118.00 in |
Weight | 22440.00 lbs |
