New
Case Construction DV210D Asphalt Compactor
New

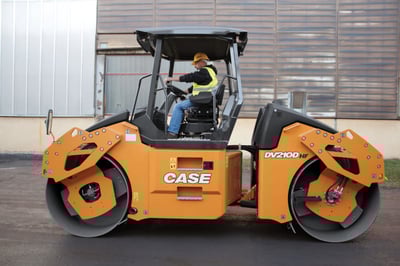

Case Construction DV210D Asphalt Compactor
Model: DV210D
- 100 horsepower
- 22,930 lb. operating weight
- 26,977 lbf. centrifugal force
Product Description
MEET THE DV210D ASPHALT COMPACTOR
The DV210D delivers 100% tractive effort and superior performance thanks to a balanced drum design that lays down centrifugal forces of nearly 27,000 mammoth pounds. The operator comfort is special. The pivoting swivel seat offers excellent sight lines to the drum edges. The multifunction control lever is intuitive to use. And thanks to the 222-gallon pressurized system, you have water to operate longer.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 221 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Make | Deutz TCD 3.6 L4 |
| Fuel Type | Diesel |
| Gross HP | 100 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Travel Speed | 6.5 mph |
| Drum Vibration | Front only, Rear only, Front and rear |
| Vibration System Design | Closed center |
| Water System | Pressurized water system |
| Dimensions & Weight | |
|---|---|
| Drum Diameter | 48 in |
| Drum Thickness | 0.9 in |
| Drum Width | 66 in |
| Operating Weight | 22930 lb |
| Wheel base | 137 in |
| Capacities | |
|---|---|
| Water Tank | 222 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | Reservoir: 16 gal |
| Compaction Forces | |
|---|---|
| Vibration Frequency | Low: 2520 vpm, High: 3120 vpm |
| Centrifugal Force | Low: 17535 lb, High: 26977 lb |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | DV210D |
| Type | Asphalt Compactor |
| Product Dimensions & Weight | |
|---|---|
| Length | 185.00 in |
| Width | 71.00 in |
| Height | 118.00 in |
| Weight | 22930.00 lbs |
