Case Construction DV23CE Asphalt Compactor
New
Case Construction DV23CE Asphalt Compactor
Model: DV23CE
- 33.5 horsepower
- 4,600 lb. operating weight
- 9,217 lbf. centrifugal force
Product Description

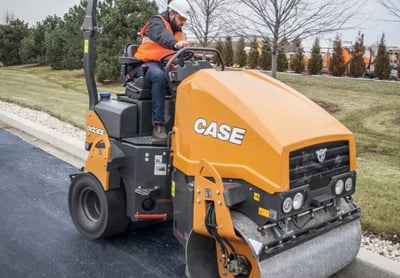

MEET THE DV23CE ASPHALT COMPACTOR
The beauty of the CASE DV23CE is that it takes the best of its double drum counterpart – including its narrow drum width, high curb clearance, easy transport, go-anywhere size – and combines it with rear kneading pneumatic tires. They provide a higher quality of compaction with less voids, along with the versatility to tackle granular and asphalt applications. You still get standard offset adjustability, double-filtration water system and excellent visibility. Not to mention, enhanced controls that make operation intuitive and easy.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 111 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Make | Kubota D1803 |
| Fuel Type | Diesel |
| Gross HP | 33.5 hp |
| No. Of Cylinders | 3 |
| Performance | |
|---|---|
| Travel Speed | 6.8 mph |
| Steering Type | Oscillation/Articulated |
| Drum Vibration | Front |
| Vibration System Design | Series |
| Water System | Pressurized water system |
| Dimensions & Weight | |
|---|---|
| Drum Diameter | 27.4 in |
| Drum Thickness | 0.5 in |
| Drum Width | 44.1 in |
| Operating Weight | 4600 lb |
| Wheel base | 68.5 in |
| Capacities | |
|---|---|
| Water Tank | 50.2 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | Reservoir: 3.2 gal |
| Compaction Forces | |
|---|---|
| Vibration Frequency | Low: 3480 vpm, High: 3960 vpm |
| Centrifugal Force | 9217 lb |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | DV23CE |
| Type | Asphalt Compactor |
| Product Dimensions & Weight | |
|---|---|
| Length | 98.40 in |
| Width | 44.10 in |
| Height | 100.40 in |
| Weight | 4600.00 lbs |
