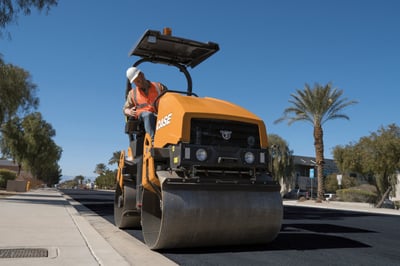

Case Construction DV23E Asphalt Compactor
New
Case Construction DV23E Asphalt Compactor
Model: DV23E
A cinch to transport and can go almost anywhere.
- 33.5 horsepower
- 4,960 lb. operating weight
- 9,217 lbf. centrifugal force
Product Description
MEET THE DV23E ASPHALT COMPACTOR
The DV23E weighs in at 4,960 pounds and operates at 33.5 horsepower – making it easy to transport and extremely compact for asphalt compaction operations such as bike paths, walkways and driveways. A high curb clearance, no overhangs and narrow drum width allow it to go almost anywhere – and the machine provides the control flexibility you’d expect to find in much larger rollers.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 111 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Make | Kubota D1803 |
| Fuel Type | Diesel |
| Gross HP | 33.5 hp |
| No. Of Cylinders | 3 |
| Performance | |
|---|---|
| Travel Speed | 6.8 mph |
| Steering Type | Oscillation/Articulated |
| Drum Vibration | Front and rear |
| Vibration System Design | Series |
| Water System | Pressurized water system |
| Dimensions & Weight | |
|---|---|
| Drum Diameter | 27.4 in |
| Drum Thickness | 0.5 in |
| Drum Width | 39.4 in |
| Operating Weight | 4960 lb |
| Wheel base | 68.5 in |
| Capacities | |
|---|---|
| Water Tank | 50.2 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | Reservoir 3.2 gal |
| Compaction Forces | |
|---|---|
| Vibration Frequency | Low: 3480 vpm, High: 3960 vpm |
| Centrifugal Force | 9217 lb (each drum) |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | DV23E |
| Type | Asphalt Compactor |
| Product Dimensions & Weight | |
|---|---|
| Length | 98.40 in |
| Width | 44.50 in |
| Height | 10.40 in |
| Weight | 4960.00 lbs |
