Product Description

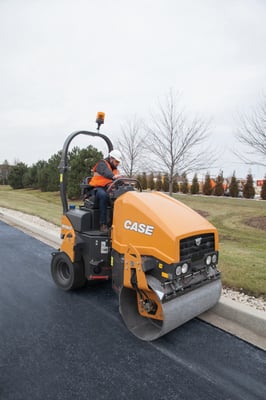

MEET THE DV26CE ASPHALT COMPACTOR
The CASE DV26CE provides the compaction quality of a pneumatic tire roller in an extremely efficient and powerful package. The front steel drum provides best-in-class centrifugal forces while the rear kneading pneumatic tires deliver higher quality compaction with fewer passes on both granular and asphalt applications. With high curb clearance, no overhangs and narrow drum width, you can take that mashing might almost anywhere. It also features an enhanced interface, easy serviceability and improved ergonomics.
Specs
Additional Specs | |
---|---|
Cab Enclosure | Optional |
Operator Station | ROPS |
Engine | |
---|---|
Displacement | 111 in³ |
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Make | Kubota D1803 |
Fuel Type | Diesel |
Gross HP | 33.5 hp |
No. Of Cylinders | 3 |
Performance | |
---|---|
Travel Speed | 6.8 mph |
Steering Type | Oscillation/Articulated |
Drum Vibration | Front |
Vibration System Design | Series |
Water System | Pressurized water system |
Dimensions & Weight | |
---|---|
Drum Diameter | 27.4 in |
Drum Thickness | 0.5 in |
Drum Width | 47.2 in |
Operating Weight | 5180 lb |
Wheel base | 69.1 in |
Capacities | |
---|---|
Water Tank | 50.2 gal |
Hydraulic System | |
---|---|
Hydraulic System | Reservoir: 7.5 gal |
Compaction Forces | |
---|---|
Vibration Frequency | Low: 3480 vpm, High: 3960 vpm |
Centrifugal Force | 10566 lb |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Make/Model | |
---|---|
Model | DV26CE |
Type | Asphalt Compactor |
Product Dimensions & Weight | |
---|---|
Length | 98.40 in |
Width | 51.00 in |
Height | 71.50 in |
Weight | 5180.00 lbs |
