Product Description

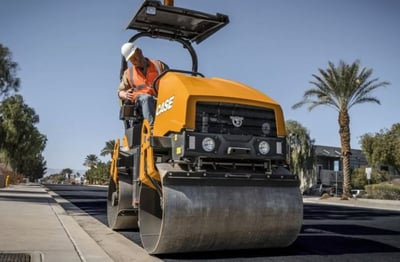

MEET THE DV26E ASPHALT COMPACTOR
Like the DV23E, the CASE DV26E also checks in at 33.5 horsepower, but this one’s spent time in the gym bulking up. This heavier-duty model provides greater compaction productivity and a wider drum, but it keeps its tight turning radius. There are improved ergonomics and an enhanced interface, so you can easily reach all the functions. Two drive settings give you more control whether compacting or making swift turns. The roller delivers big. High centrifugal forces plus selectable dual vibration frequencies that let you dial the machine to meet your specific job needs.
Specs
Additional Specs | |
---|---|
Cab Enclosure | Optional |
Operator Station | ROPS |
Engine | |
---|---|
Displacement | 111 in³ |
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Make | Kubota D1803 |
Fuel Type | Diesel |
Gross HP | 33.5 hp |
No. Of Cylinders | 3 |
Performance | |
---|---|
Travel Speed | 6.8 mph |
Steering Type | Oscillation/Articulated |
Drum Vibration | Front and rear |
Vibration System Design | Series |
Water System | Pressurized water system |
Dimensions & Weight | |
---|---|
Drum Diameter | 27.4 in |
Drum Thickness | 0.5 in |
Drum Width | 47.2 in |
Operating Weight | 5490 lb |
Wheel base | 68.5 in |
Capacities | |
---|---|
Water Tank | 50.2 gal |
Hydraulic System | |
---|---|
Hydraulic System | Reservoir: 7.5 gal |
Compaction Forces | |
---|---|
Vibration Frequency | Low: 3480 vpm, High: 3960 vpm |
Centrifugal Force | 10566 lb (each drum) |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Make/Model | |
---|---|
Model | DV26E |
Type | Asphalt Compactor |
Product Dimensions & Weight | |
---|---|
Length | 98.40 in |
Width | 53.10 in |
Height | 100.40 in |
Weight | 5490.00 lbs |
