New

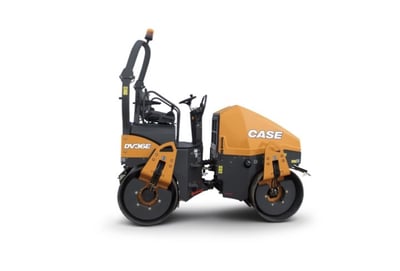

Case Construction DV36E Asphalt Compactor
New
Case Construction DV36E Asphalt Compactor
Model: DV36E
- 43.9 horsepower
- 8,290 lb. operating weight
- 11,668 lbf. centrifugal force
Product Description
MEET THE DV36E ASPHALT COMPACTOR
The CASE DV36E is a hefty step up in the lineup, rolling along at a burly operating weight of 8,290 lbs. and enjoying the power of 43.9 horses. It’ll have no problem evening out the uneven. Yet, it’s still easy to transport from site to site, and it offers features of a much larger machine. This compacting fiend sports dual amplitudes and dual frequencies for max productivity. And the comfortable operating platform and integrated controls reduce fatigue. Because really, there’s no time for slowing down.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 134.3 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Make | Kubota D1803CRT |
| Fuel Type | Diesel |
| Gross HP | 43.9 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Travel Speed | 6.2 mph |
| Steering Type | Oscillation/Articulated |
| Drum Vibration | Front and rear |
| Vibration System Design | Series |
| Water System | Pressurized water system |
| Dimensions & Weight | |
|---|---|
| Drum Diameter | 33.5 in |
| Drum Thickness | 0.7 in |
| Drum Width | 51.2 in |
| Operating Weight | 8290 lb |
| Wheel base | 76.8 in |
| Capacities | |
|---|---|
| Water Tank | 92.5 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | Reservoir: 9.8 gal |
| Compaction Forces | |
|---|---|
| Vibration Frequency | Low: 2460 vpm, High: 3300 vpm |
| Centrifugal Force | 11668 lb |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | DV36E |
| Type | Asphalt Compactor |
| Product Dimensions & Weight | |
|---|---|
| Length | 118.10 in |
| Width | 54.50 in |
| Height | 111.80 in |
| Weight | 8290.00 lbs |
