Product Description

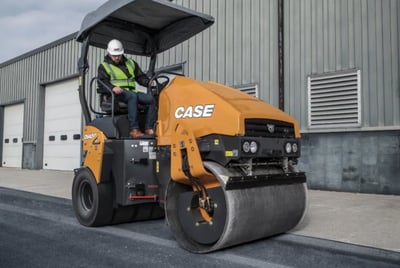

MEET THE DV45CE ASPHALT COMPACTOR
The DV45CE is the kind of machine that delivers on all fronts. It starts with plenty of compacting might, in the form of centrifugal forces that approach 13,000 lbs. This model gets rear kneading pneumatic tires that produce higher-quality compaction and make it a solid choice for asphalt and granular applications. The size makes it easy to transport. The control features include dual amplitudes and dual frequencies that further the productivity. And there’s a vibration-reducing platform to keep you from feeling all the compacting that’s quickly getting you closer to done.
Specs
Additional Specs | |
---|---|
Cab Enclosure | Optional |
Operator Station | ROPS |
Engine | |
---|---|
Displacement | 134.3 cu in |
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Make | Kubota D1803CRT |
Fuel Type | Diesel |
Gross HP | 43.9 hp |
No. Of Cylinders | 4 |
Performance | |
---|---|
Travel Speed | 6.2 mph |
Steering Type | Oscillation/Articulated |
Drum Vibration | Front |
Vibration System Design | Series |
Water System | Pressurized water system |
Dimensions & Weight | |
---|---|
Drum Diameter | 33.5 in |
Drum Thickness | 0.7 in |
Drum Width | 51.2 in |
Operating Weight | 9535 lb |
Wheel base | 78.7 in |
Capacities | |
---|---|
Water Tank | 92.5 gal |
Hydraulic System | |
---|---|
Hydraulic System | Reservoir: 9.8 gal |
Compaction Forces | |
---|---|
Vibration Frequency | Low: 2460 vpm, High: 3300 vpm |
Centrifugal Force | 12949 lb |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Make/Model | |
---|---|
Model | DV45CE |
Type | Asphalt Compactor |
Product Dimensions & Weight | |
---|---|
Length | 118.10 in |
Width | 57.50 in |
Height | 111.80 in |
Weight | 9535.00 lbs |
