New
Case Construction DV45E Asphalt Compactor
New
Case Construction DV45E Asphalt Compactor
Model: DV45E
- 43.9 horsepower
- 10,252 lb. operating weight
- 12,949 lbf. centrifugal force
Product Description

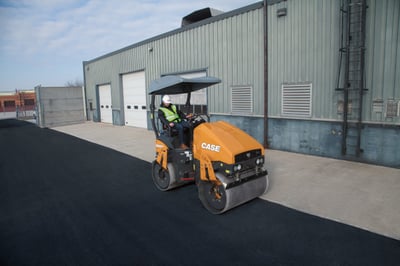

MEET THE DV45E ASPHALT COMPACTOR
The DV45E is the strongest and most powerful of the CASE E Series compact DV vibratory rollers — weighing in at 10,252 pounds and operating at 43.9 horsepower. Centrifugal forces of almost 13,000 pounds deliver brute asphalt compaction power while dual amplitude and dual frequency functionality allows operators to be as precise as they need to be.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Displacement | 134.3 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Make | Kubota D1803CRT |
| Fuel Type | Diesel |
| Gross HP | 43.9 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Travel Speed | 6.2 mph |
| Steering Type | Oscillation/Articulated |
| Drum Vibration | Front and rear |
| Vibration System Design | Series |
| Water System | Pressurized water system |
| Dimensions & Weight | |
|---|---|
| Drum Diameter | 33.5 in |
| Drum Thickness | 0.7 in |
| Drum Width | 54.3 in |
| Operating Weight | 10252 lb |
| Wheel base | 76.8 in |
| Capacities | |
|---|---|
| Water Tank | 92.5 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | Reservoir: 9.8 gal |
| Compaction Forces | |
|---|---|
| Vibration Frequency | Low: 2460 vpm, High: 3300 vpm |
| Centrifugal Force | 12949 lb |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | DV45E |
| Type | Asphalt Compactor |
| Product Dimensions & Weight | |
|---|---|
| Length | 118.10 in |
| Width | 57.50 in |
| Height | 111.80 in |
| Weight | 10252.00 lbs |
