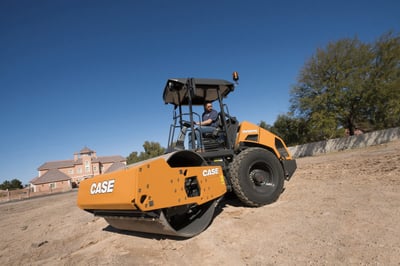

Case Construction SV207E Soil Compactor
New
Case Construction SV207E Soil Compactor
Model: SV207E
- 75 horsepower
- 15,400 lb. operating weight
- 29,450 lbf. centrifugal force
Product Description
MEET THE SV207E SOIL COMPACTOR
The SV207E features a compact rear design and a smaller-diameter roller with a thicker shell that improves overall performance, maneuverability and transportation for compaction on jobsites of all sizes. With best-in-class centrifugal forces of up to nearly 30,000 pounds and dual amplitude/frequency functionality, the SV207E is one of the most compact and efficient single-drum rollers in the industry.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Emissions Tier (EPA) | Tier 4 |
| Engine Make | Kubota |
| Engine Model | V3307-CR-TE5 |
| Fuel Type | Diesel |
| Gross HP | 75 hp |
| Max Torque | 191 lb/ft |
| Performance | |
|---|---|
| Travel Speed | 7.5 mph |
| Steering Type | Gear |
| Vibration System Design | Hydraulic circuit (closed) |
| Vibration Modes | Auto control (2) |
| Dimensions & Weight | |
|---|---|
| Drum Diameter | Smooth: 48.2 in, Padfoot: 48 in |
| Drum Thickness | 0.7 in |
| Drum Width | 66.1 in |
| Ground Clearance | 15 in |
| Height | 112.6 in |
| Length | 174.2 in |
| Operating Weight | Smooth drum: 15400-18520 lb, Padfoot drum: 16330-19440 lb |
| Wheel base | 90.6 in |
| Width | 70.5 in |
| Capacities | |
|---|---|
| Fuel Tank | 34.34 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | 14 gal |
| Compaction Forces | |
|---|---|
| Vibration Frequency | Low: 2040 vpm, High: 2160 vpm |
| Centrifugal Force | Low: 14387 lb, High: 29450lb |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | SV207E |
| Type | Soil Compactor |
| Product Dimensions & Weight | |
|---|---|
| Length | 174.20 in |
| Width | 70.50 in |
| Height | 112.60 in |
| Weight | 15400.00 lbs |
