Product Description

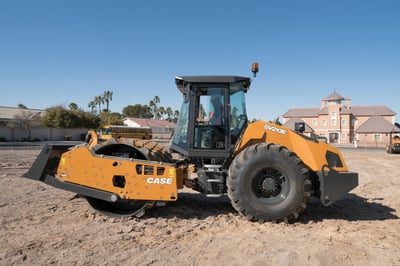

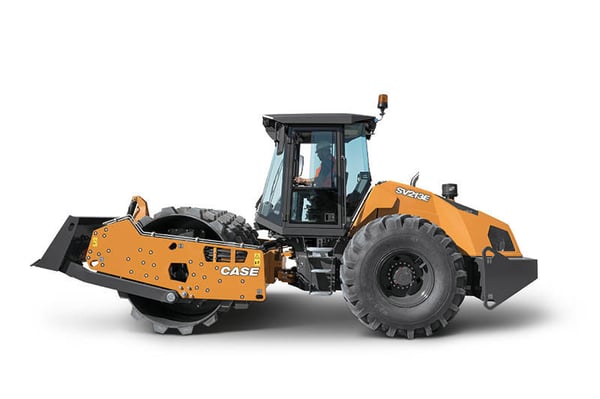

MEET THE SV213E SOIL COMPACTOR
No machine in its class provides greater centrifugal force than the SV213E. From rough terrain to slopes up to 67 percent, the SV213E is a heavy-duty soil compactor that sets the standard for compaction strength and precision. Available in both cab and open ROPS configurations, E Series soil compactors feature a spacious, comfortable and intuitive operator environment with an adjustable seat that swivels up to 80 degrees, providing excellent visibility of the drum surface. An LED display integrated within the steering wheel further improves operation, visibility and access to critical machine information. Groundline serviceability is made simple with easy access at ground level to all fluid ports, drains, service checkpoints and filters.
Specs
Additional Specs | |
---|---|
Cab Enclosure | Optional |
Operator Station | ROPS |
Engine | |
---|---|
Emissions Tier (EPA) | Tier 4 |
Engine Make | Deutz |
Engine Model | TCD3.6 L4 |
Fuel Type | Diesel |
Gross HP | 134 hp |
Max Torque | 368.8 lb/ft |
Performance | |
---|---|
Travel Speed | 7.5 mph |
Steering Type | Gear |
Vibration System Design | Hydraulic circuit (closed) |
Vibration Modes | Auto control (2) |
Dimensions & Weight | |
---|---|
Drum Diameter | Smooth: 59.1 in, Padfoot: 58.7 in |
Drum Thickness | 1 in |
Drum Width | 83.9 in |
Ground Clearance | 16.9 in |
Height | 116.9 in |
Length | 232.3 in |
Operating Weight | Smooth drum: 27730-33400 lb, Padfoot drum: 25860-31990 lb |
Wheel base | 117.7 in |
Width | 89 in |
Capacities | |
---|---|
Fuel Tank | 91.1 gal |
Hydraulic System | |
---|---|
Hydraulic System | 20.1 gal |
Compaction Forces | |
---|---|
Vibration Frequency | Low: 1860 vpm, High: 2100 vpm |
Centrifugal Force | Low: 34845 lb, High: 64070 lb |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Make/Model | |
---|---|
Model | SV213E |
Type | Soil Compactor |
Product Dimensions & Weight | |
---|---|
Length | 232.30 in |
Width | 89.00 in |
Height | 116.90 in |
Weight | 27730.00 lbs |
