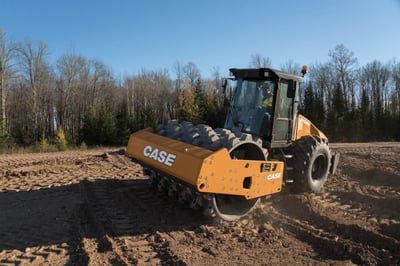

Case Construction SV215E Soil Compactor
New
Case Construction SV215E Soil Compactor
Model: SV215E
- 154 horsepower
- 33,420 lb. machine weight
- 73,063 lbf. centrifugal force
Product Description
MEET THE SV215E SOIL COMPACTOR
The SV215E is built for heavy-duty soil compaction with centrifugal forces up to 73,063 pounds, standard dual amplitudes and dual frequencies, standard dual auto vibration control, and an oscillating articulated roller joint that ensures consistent drum-to-ground contact. Compact deeper lifts faster, in fewer passes, and with less wear and tear on your equipment — all with a sleek and operator-friendly roller that’s easy to operate and easy to maintain.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Optional |
| Operator Station | ROPS |
| Engine | |
|---|---|
| Emissions Tier (EPA) | Tier 4 |
| Engine Make | Deutz |
| Engine Model | TCD4.1 L4 |
| Fuel Type | Diesel |
| Gross HP | 154 hp |
| Max Torque | 449.2 lb/ft |
| Performance | |
|---|---|
| Travel Speed | 7.9 mph |
| Steering Type | Gear |
| Vibration System Design | Hydraulic circuit (closed) |
| Vibration Modes | Auto control (2) |
| Dimensions & Weight | |
|---|---|
| Drum Diameter | Smooth: 59.1 in, Padfoot: 67.6 in |
| Drum Thickness | 1.4 in |
| Drum Width | 83.9 in |
| Ground Clearance | 16.9 in |
| Height | 116.9 in |
| Length | 234.3 in |
| Operating Weight | Smooth drum: 32570-32720 lb, Padfoot drum: 33280-33420 lb |
| Wheel base | 119.7 in |
| Width | 89 in |
| Capacities | |
|---|---|
| Fuel Tank | 91.1 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | 23.8 gal |
| Compaction Forces | |
|---|---|
| Vibration Frequency | Low: 1740 vpm, High: 2100 vpm |
| Centrifugal Force | Low: 48334 lb, High: 73063 lb |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | SV215E |
| Type | Soil Compactor |
| Product Dimensions & Weight | |
|---|---|
| Length | 234.30 in |
| Width | 89.00 in |
| Height | 116.90 in |
| Weight | 33420.00 lbs |
