Product Description

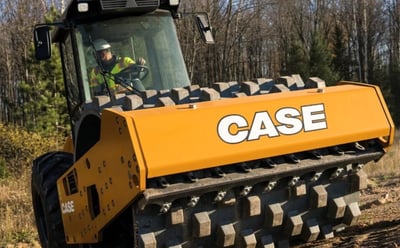

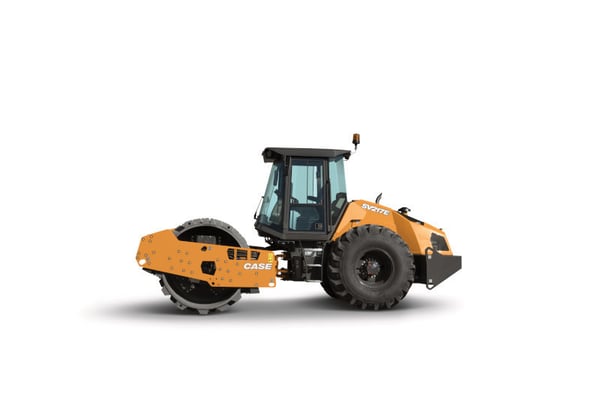

MEET THE SV217E SOIL COMPACTOR
The largest and most powerful soil compactor in the CASE lineup, the 36,500-pound SV217E rolls with up to 74,861 pounds of centrifugal force and standard dual amplitudes and dual frequencies that make it both extremely strong and easy to dial in to specific compaction requirements. It also comes standard with auto vibration control, and an oscillating articulated roller joint that ensures consistent drum-to-ground contact across varying terrain. A large cab with intuitive controls and a steering wheel-integrated display provides excellent visibility and control — putting you firmly in control of this extremely strong and versatile roller.
Specs
Additional Specs | |
---|---|
Cab Enclosure | Optional |
Operator Station | ROPS |
Engine | |
---|---|
Emissions Tier (EPA) | Tier 4 |
Engine Make | Deutz |
Engine Model | TCD4.1 L4 |
Fuel Type | Diesel |
Gross HP | 154 hp |
Max Torque | 449.2 lb/ft |
Performance | |
---|---|
Travel Speed | 7.9 mph |
Steering Type | Gear |
Vibration System Design | Hydraulic circuit (closed) |
Vibration Modes | Auto control (2) |
Dimensions & Weight | |
---|---|
Drum Diameter | Smooth: 59.1 in, Padfoot: 67.7 in |
Drum Thickness | 1.4 in |
Drum Width | 83.9 in |
Ground Clearance | 16.9 in |
Height | 116.9 in |
Length | 234.3 in |
Operating Weight | Smooth drum: 35880-36020 lb, Padfoot drum: 36350-36500 lb |
Wheel base | 119.7 in |
Width | 89 in |
Capacities | |
---|---|
Fuel Tank | 91.1 gal |
Hydraulic System | |
---|---|
Hydraulic System | 23.8 gal |
Compaction Forces | |
---|---|
Vibration Frequency | Low: 1680 vpm, High: 2100 vpm |
Centrifugal Force | Low: 49907 lb, High: 74861 lb |
Transmission | |
---|---|
Transmission | Hydrostatic (HST) |
Make/Model | |
---|---|
Model | SV217E |
Type | Soil Compactor |
Product Dimensions & Weight | |
---|---|
Length | 234.30 in |
Width | 89.00 in |
Height | 116.90 in |
Weight | 36500.00 lbs |
