New

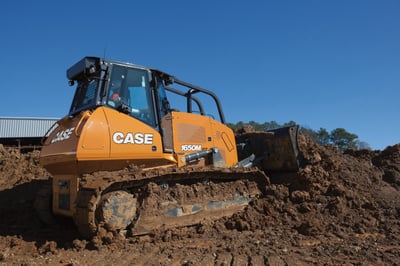

Case Construction 1650M Dozer
New
Case Construction 1650M Dozer
Model: 1650M
- 130-inch blade width
- 150 engine horsepower
- 39,557 lb. rated operating weight
Product Description
MEET THE 1650M DOZER
The 1650M is built for heavy dozing and ripping, with a variety of track and blade options and configurations designed to keep the machine pushing forward even in the toughest of conditions. And while it’s built for power, it also features the control customization, industry-leading visibility and operator efficiencies of the entire CASE M Series dozer lineup. It’s also compatible with a full range of machine control/grade control solutions, including the factory-fit machine control option, as well as CASE Universal Machine Control.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Displacement | 409 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Fuel Injection | Common rail |
| Fuel Type | Diesel |
| Gross HP | 164 hp |
| No. Of Cylinders | 6 |
| Performance | |
|---|---|
| Ground Pressure | 4.78-6.62 psi |
| Travel Speed | 5.8 mph |
| Driveline | Track |
| Dimensions & Weight | |
|---|---|
| Blade Width | 131-156 in |
| Ground Clearance | 13.5 in |
| Height | 116 in |
| Length | 289 in |
| Operating Weight | 37756-39557 lb |
| Width | 118 in |
| Capacities | |
|---|---|
| DEF | 14 gal |
| Hydraulic Tank | 42 gal |
| Fuel Tank | 85 gal |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| New Holland Headers | |
|---|---|
| Max Drawbar Pull Lbs. | 61200 lb |
| Track Adjustment | Hydraulic |
| Make/Model | |
|---|---|
| Model | 1650M |
| Type | Crawler Dozer |
| Product Dimensions & Weight | |
|---|---|
| Length | 289.00 in |
| Width | 118.00 in |
| Height | 116.00 in |
| Weight | 39557.00 lbs |
