Case Construction 2050M Dozer
New
Case Construction 2050M Dozer
Model: 2050M
- 135-inch blade width
- 214 engine horsepower
- 48,773 lb. rated operating weight
Product Description

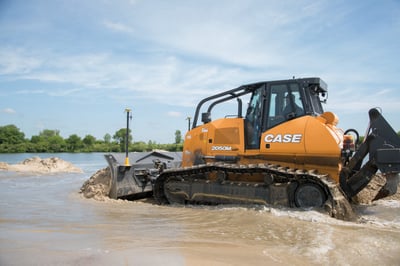

MEET THE 2050M DOZER
The most power and performance in the CASE lineup and in its size class. The 2050M is the dozer you need for large cuts and mass earthmoving — and is fully compatible with an entire range of machine control/grade control solutions including the optional factory fit machine control. Match that with industry-leading visibility, a clean and comfortable operator station, and powerful settings to dial in machine performance for the heaviest work — and the 2050M wins in strength, controllability and precision.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Displacement | 409 in³ |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Fuel Injection | Common rail |
| Fuel Type | Diesel |
| Gross HP | 232 hp |
| No. Of Cylinders | 6 |
| Performance | |
|---|---|
| Ground Pressure | 5.35-7.33 psi |
| Travel Speed | 6.1 mph |
| Driveline | Track |
| Dimensions & Weight | |
|---|---|
| Blade Width | 134.7-157.5 in |
| Ground Clearance | 16.1 in |
| Height | 124 in |
| Length | 290 in |
| Operating Weight | 45414-48773 lb |
| Width | 124 in |
| Capacities | |
|---|---|
| DEF | 14 gal |
| Hydraulic Tank | 55 gal |
| Fuel Tank | 107 gal |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| New Holland Headers | |
|---|---|
| Max Drawbar Pull Lbs. | 81000 lb |
| Track Adjustment | Hydraulic |
| Make/Model | |
|---|---|
| Model | 2050M |
| Type | Crawler Dozer |
| Product Dimensions & Weight | |
|---|---|
| Length | 290.00 in |
| Width | 124.00 in |
| Height | 124.00 in |
| Weight | 48773.00 lbs |
