Case Construction 650M Dozer
New
Case Construction 650M Dozer
Model: 650M
- 90-inch blade width
- 68 engine horsepower
- 15,997 lb. rated operating weight
Product Description

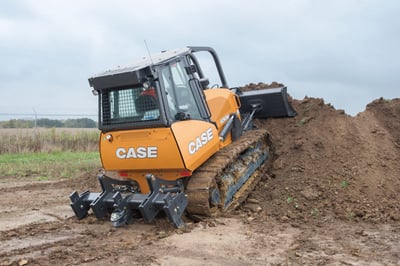

MEET THE 650M DOZER
The CASE 650M features all the power and performance of the CASE M Series dozers — in a practical and efficient footprint ideal for residential construction, and any jobsite/application where space and access are at a premium. Excellent tractive effort and pushing power is matched with dynamic and efficient controls — and it’s also compatible with a full range of machine control/grade control systems. The dozer is available in numerous track and blade configurations to meet specific applications. This machine is the ideal entry-level dozer or agile fine grading solution for jobsites of all sizes.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Displacement | 207.5 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Fuel Injection | Common rail |
| Fuel Type | Diesel |
| Gross HP | 73.8 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Ground Pressure | 4.12-5.98 psi |
| Travel Speed | 5 mph |
| Driveline | Track |
| Dimensions & Weight | |
|---|---|
| Blade Width | 96-124 in |
| Ground Clearance | 13.07 in |
| Height | 105 in |
| Length | 195 in |
| Operating Weight | 15997 lb |
| Width | 82 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 16.5 gal |
| Fuel Tank | 40.8 gal |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| New Holland Headers | |
|---|---|
| Max Drawbar Pull Lbs. | 39086 lb (using standard track chain) |
| Track Adjustment | Hydraulic |
| Make/Model | |
|---|---|
| Model | 650M |
| Type | Utility Dozer |
| Product Dimensions & Weight | |
|---|---|
| Length | 195.00 in |
| Width | 92.00 in |
| Height | 96.00 in |
| Weight | 15997.00 lbs |
