New
Case Construction 850M Dozer
New
Case Construction 850M Dozer
Model: 850M
- 104-inch blade width
- 112 engine horsepower
- 22,381 lb. rated operating weight
Product Description

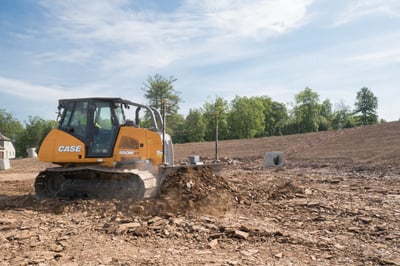

MEET THE 850M DOZER
The CASE 850M dozer pushes with best-in-class drawbar pull and horsepower, features industry-leading visibility down to the blade, tracks and work area — and provides excellent control customization and load management for tackling heavy earthmoving and fine grading. The dozer is available in numerous track and blade configurations to meet specific applications — all compatible with a full range of machine control/grade control systems and the CASE factory-fit option.
Specs
| Additional Specs | |
|---|---|
| Cab Enclosure | Standard |
| Operator Station | ROPS, Enclosed Cab |
| Engine | |
|---|---|
| Displacement | 275 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Fuel Injection | Common rail |
| Fuel Type | Diesel |
| Gross HP | 120 hp |
| No. Of Cylinders | 4 |
| Performance | |
|---|---|
| Ground Pressure | 4-5.3 psi |
| Travel Speed | 5.4 mph |
| Driveline | Track |
| Dimensions & Weight | |
|---|---|
| Blade Width | 104-124 in |
| Ground Clearance | 14.4 in |
| Height | 109 in |
| Length | 208 in |
| Operating Weight | 22381 lb |
| Width | 98 in |
| Capacities | |
|---|---|
| DEF | 12 gal |
| Hydraulic Tank | 26 gal |
| Fuel Tank | 50 gal |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| New Holland Headers | |
|---|---|
| Max Drawbar Pull Lbs. | 41010 lb (using standard track chain) |
| Track Adjustment | Hydraulic |
| Make/Model | |
|---|---|
| Model | 850M |
| Type | Crawler Dozer |
| Product Dimensions & Weight | |
|---|---|
| Length | 208.00 in |
| Width | 98.00 in |
| Height | 109.00 in |
| Weight | 22381.00 lbs |
