Bobcat E20 R-Series Compact Excavator

Bobcat E20 R Series

Product Description

Bobcat E20 rear.jpg

MEET THE E20 EXCAVATOR

The Bobcat E20 compact (mini) excavator delivers impressive performance in tight areas with minimal repositioning. Hydraulically retract the undercarriage to only 39 inches to travel through gates or between homes, then expand to 54 inches for a wider footprint and greater performance. Combine size with zero tail swing to give you better maneuverability on the most restricted jobsites.

PRECISION POWER

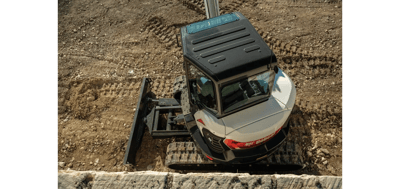

Bobcat E20 With Bucket
The Bobcat E20 excavator offers outstanding performance with its Selectable Control Pattern, providing operators with customizable control settings. Its 2-Speed Travel and Auto Shift enhance maneuverability, while the retractable blade and undercarriage ensure versatility in various spaces.

UPTIME PROTECTION

Bobcat e20
Keeping your machine running at its optimal performance ensures maximum output. Bobcat steel hydraulic lines offer better protection than rubber hoses and are routed through the lower portion of the boom swing casting and tucked securely into the top area of the boom structure, protecting costly damage and component life.

BIG PERFORMANCE, SMALL PACKAGE

If the tasks at hand frequently come up in confined jobsites where space is limited these compact excavators are the perfect option. They may come in a small package but they do not sacrifice performance. Construction professionals, landscapers, and even homeowners find this machine useful for tasks such as trenching, grading, and excavating where precision and efficiency are key.

Bobcat E20 (3).webp

Specs

Additional Specs
Cab Enclosure
Optional
Tail Swing Type
Zero
Engine
Emissions Tier (EPA)
Tier 4
Fuel Type
Diesel
Gross HP
15 hp
Turbocharged Engine
No
Performance
Arm Digging Force
2086 lbf
Bucket Digging Force
4684 lbf
Travel Speed
2.6 mph
Max Dig Depth
101 in
Max Dump Height
106 in
Driveline
Track
Dimensions & Weight
Height with Operator Cab
90.4 in
Operating Weight
4306 lb
Reach @ Maximum Height
167.9 in
Size Class
1-4 Ton
Weight Class
2 t
Capacities
Fuel Tank
5 gal
Make/Model
Model
E20
Type
Compact Excavator
Size Class
1-4 Ton
