Bobcat E26 R-Series Compact Excavator

Bobcat E26 R Series

Product Description

Bobcat E26 bucket.webp

MEET THE E26 EXCAVATOR

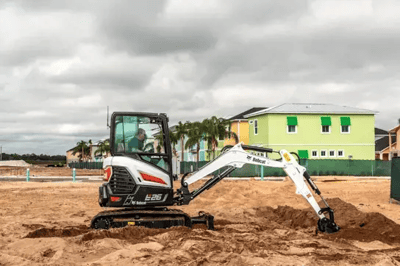

The Bobcat E26 compact (mini) excavator features minimal tail swing to reduce the risk of damage to your machine and surrounding objects. You can easily maneuver established lawns, crowded jobsites and sensitive surfaces with the compact size and minimal ground disturbance and boost your working range with the standard long arm configuration.

THE BEST LIFT CAPACITY

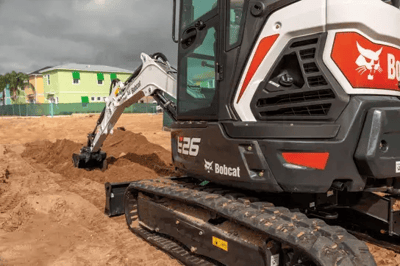

Bobcat E26 side profile digging.webp

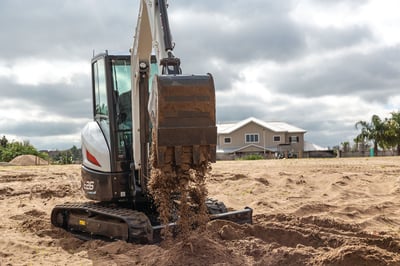

Dig deeper and reach farther with the redesigned E26 R-Series compact excavator. The machine’s standard long-arm configuration allows operators to enjoy added reach and dig depth, while the increased cylinder size offers excellent breakout forces and lift capacities due to larger standard counterweight.

DURABLE

Bobcat E26 (1).jpg
The new body panels are stiffer and more robust. Hinges and latches are stronger, and the fit is improved. The blade is also more robust for increased durability. The hydraulic lines are steel instead of rubber, and they’re routed through the boom; both features help protect them from damage.

REDESIGNED COMFORT

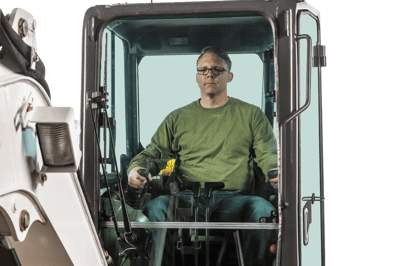

The R-Series E26 cab has a completely new design with more foot room and legroom for operators of all sizes. The glass surface area of the cab is 19 percent larger than previous generations, which gives you better visibility. It also has redesigned, more comfortable joysticks. The front panel is larger to make the machine easier to enter and exit. The cab is much quieter than previous generations, and the new stiffer side panels reduce vibration in the cab. A dual-flange track roller system smooths out the ride on bumpy terrain.

Bobcat E26 Cab.webp

Specs

Additional Specs
Air Conditioning
Optional
Cab Enclosure
Optional
Tail Swing Type
Minimal
Engine
Emissions Tier (EPA)
Tier 4
Fuel Type
Diesel
Gross HP
24.8 hp
Turbocharged Engine
No
Performance
Arm Digging Force
3547 lbf
Bucket Digging Force
5652 lbf
Travel Speed
3.2 mph
Max Dig Depth
114.4 in
Max Dump Height
129.6 in
Driveline
Track
Dimensions & Weight
Height with Operator Cab
96 in
Operating Weight
6489 lb
Reach @ Maximum Height
192 in
Size Class
1-4 Ton
Weight Class
2.9 t
Capacities
Fuel Tank
9.1 gal
Hydraulic System
Auxiliary Pressure
2611 psi
Make/Model
Model
E26
Type
Compact Excavator
Size Class
1-4 Ton
Product Dimensions & Weight
Length
170.40 in
Width
61.00 in
Height
96.00 in
Weight
6489.00 lbs
