Bobcat E50 R2-Series Compact Excavator

Bobcat E50 R series

Product Description

Bobcat E50 tail swing.jpg

MEET THE E50 EXCAVATOR

The powerful E50 compact (mini) excavator helps you push the limits of productivity with enhanced hydraulic performance, improved efficiency, simplified maintenance and more precise control. Standard features include a redesigned Bobcat engine, an improved cooling system to enhance performance, serviceability and component life; low-effort joysticks that respond easily to operator input; hydraulic control for better metering, finite movement and controllability on level grading; and fast cycle times. Minimal tail swing means less than 1 inch of overhang, ensuring easy work in tight areas.

MINIMAL TAIL SWING

Bobcat E50 studio.webp

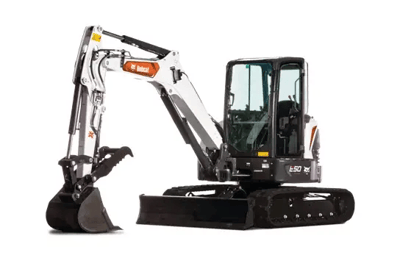

Minimal tail swing provides more maneuverability than conventional tail swing, however the rear of the house protrudes as much as 6 in. beyond the width of the tracks. Slew and deposit soil where you need it, reposition the machine fewer times, and worry less about inadvertently contacting any surrounding objects.

PERFORMANCE BOOST

Bobcat E50 dig.jpg

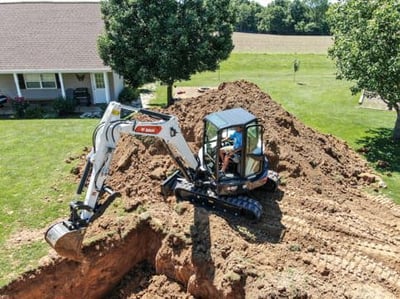

Option up for more versatility with performance-boosting features including a clamp-ready extendable arm, long arm, and angle blade. Reach up to 30 in. more than the standard arm with the extendable arm option with less repositioning. Dump spoil further away from the excavator and reach further back into the trench for cleanout purposes. Loading trucks is easier, too.

Specs

Additional Specs
Air Conditioning
Optional
Angle Blade
Optional
Cab Enclosure
Optional
Tail Swing Type
Minimal
Engine
Emissions Tier (EPA)
Tier 4
Fuel Type
Diesel
Gross HP
48.8 hp
Turbocharged Engine
Yes
Performance
Arm Digging Force
5962-6987 lbf
Boom Swing Angle Left/Right
Boom Swing Left: 75 degrees, Boom Swing Right: 50 degrees
Bucket Digging Force
8977-9511 lbf
Lift Capacity
6034-6746 lb
Travel Speed
2.8-3.1 mph
Max Dig Depth
136.8-152.4 in
Max Dump Height
152.4-166.8 in
Driveline
Track
Dimensions & Weight
Height with Operator Cab
99.7-100.2 in
Operating Weight
10677-11894 lb
Reach @ Maximum Height
232.8-247.2 in
Size Class
4-8 Ton
Weight Class
4.8-5.3 t
Capacities
Fuel Tank
19-21.1 gal
Hydraulic System
Auxiliary Std Flow
20 gal/min
Auxiliary Pressure
3045 psi
Make/Model
Model
E50
Type
Compact Excavator
Size Class
4-8 Ton
