Case Construction CX140E Large Excavator

Case Construction CX140E studio.png

Product Description

Case Construction CX140E excavator.png

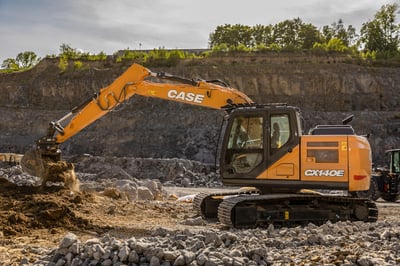

MEET THE CX140E EXCAVATOR

The CX140E is the smallest of the large excavator lineup — but it may just be the most dynamic. It weighs under 30,000 pounds making it extremely easy to transport, and it delivers big excavator performance on sites of all shapes and sizes. Steel tracks or rubber tracks. Conventional tracks or a dozer blade for backfilling and added stability. All is matched with the extreme operator enhancements featured in the CASE E Series as well as the ability to outfit the machine with OEM-fit 2D or 3D machine control solutions. If ease of transport, operator satisfaction and extreme versatility are your thing — the CX140E is your excavator.

WORK HOW YOU WANT

Case Construction CX140E.png
E Series excavators feature four working modes to optimize performance and fuel economy for various applications: Super Power (SP) for high-demand tasks, Power (P) with adjustable throttle settings, Lifting (L) for efficient object handling, and Eco (E) for up to 5% better fuel efficiency. Each mode is designed to match specific operational needs and maximize productivity.

PUTTING OPERATORS FIRST

Case Construction CX140E.jpg
Operator comfort and safety is prioritized with features such as a suspended console, heated high-back seat, and improved HVAC system. The 10-inch LCD display provides comprehensive access to controls, machine data, and camera views, along with configurable shortcuts and integrated HVAC controls for optimal visibility and jobsite awareness.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
7' 2"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
274 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT NEF4
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
102 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Arm Digging Force
12600-15700 lb
Bucket Digging Force
20200 lb
Ground Pressure
4.8 psi
Lift Capacity
See full spec sheet
Travel Speed
3.5 mph
Max Dig Depth
18' 3"
Max Dump Height
21 ft
Max Reach
28' 9"
Driveline
Track
Dimensions & Weight
Ground Clearance
17 in
Height
109 in
Height with Operator Cab
111 in
Length
159 in
Operating Weight
28900 lb
Size Class
12-20 Ton
Weight Class
14.5 t
Width
110 in
Capacities
DEF
16 gal
Hydraulic Tank
22 gal
Fuel Tank
66 gal
Hydraulic System
Hydraulic System
Open center
Auxiliary Pressure
570 psi
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX140E
Type
Large Excavator
Size Class
12-20 Ton
Product Dimensions & Weight
Length
159.00 in
Width
102.00 in
Height
109.00 in
Weight
28900.00 lbs
