Case Construction CX15EV Electric Mini Excavator

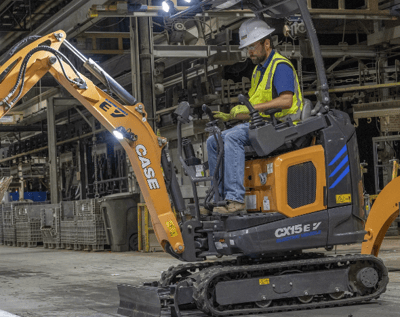

Case Construction CX15EV.jpg

Product Description

Case Construction CX15EV excavator.png

MEET THE CX15EV EXCAVATOR

The CX15EV is a dynamic electric mini excavator that is easy to transport, fits through almost every entryway for work indoors or outdoors, and features the same working performance as a diesel machine — all while delivering the core benefits of electrified construction equipment: no emissions, reduced noise, and less lifetime maintenance thanks to the elimination of the diesel engine.

PRECISION AND PERFORMANCE

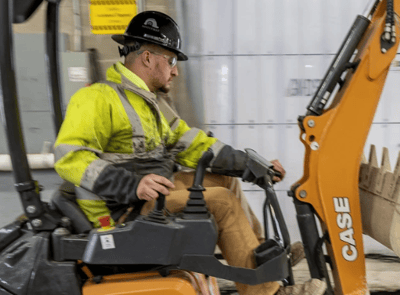

Case Construction CX15EV controls.png
Proportional thumb-roller controls allow for convenient operation of attachments, a pattern selector lets operators easily switch between SAE and ISO pattern changeover and 1- or 2-way flow combination auxiliary hydraulics give the operator the versatility to run a variety of attachments.

BIG DIG, SMALL SPACES

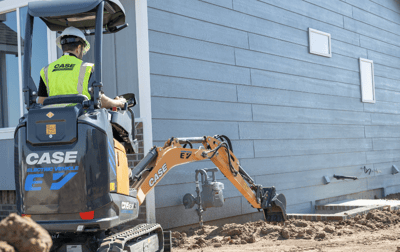

Case Construction CX15EV rear.png
The zero tailswing and swing boom design allow close work near structures or roadways, while the standard multifunction auxiliary hydraulics support various attachments. Three working modes—Power, Standard, and Economy—optimize productivity for different tasks.

Specs

Additional Specs
Tail Swing
2' 4"
Operator Station
ROPS
Engine
Emissions Tier (EPA)
Battery Electric Vehicle
Fuel Type
Electric
Gross HP
21 hp
Performance
Arm Digging Force
1304-1400 lb
Battery Type
Lithium Ion
Boom Swing Angle Left/Right
60 degrees left/70 degrees right
Bucket Digging Force
2600 lb
Ground Pressure
4.6 psi
Lift Capacity
See full spec sheet
Travel Speed
2.4 mph
Max Dig Depth
6' 9"
Max Dump Height
7' 6"
Max Reach
10' 5"
System Voltage
102 v
Gross Battery Capacity
21.5 kWh
Estimated Run Time
4-8 h
On-Board Charge Time-120V
8.5-14 h
On-Board Charge Time-240V
3-5 h
Driveline
Track
Dimensions & Weight
Ground Clearance
5.7 in
Height
91 in
Length
56 in
Operating Weight
3130-3194 lb
Size Class
1-4 Ton
Weight Class
1.5 t
Width
31 in
Capacities
Hydraulic Tank
4 gal
Hydraulic System
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
CX15EV
Type
Compact Excavator
Size Class
1-4 Ton
Product Dimensions & Weight
Length
125.00 in
Width
31.00 in
Height
91.00 in
Weight
3194.00 lbs
