Case Construction CX170E Large Excavator

Case Construction CX170E front.png

Product Description

Case Construction logo.png

MEET THE CX170E EXCAVATOR

The CX170E excels in everything from residential construction to large-scale commercial developments, offering both impressive productivity and extreme precision. With 121 hp, nearly 20 feet of dig depth, and 17,800 lbf arm digging force, it's a powerful yet easily transportable platform for businesses of all sizes. The CX170E epitomizes versatility and performance while featuring the premium operator experience of the CASE E Series Excavators.

CONFIGURE YOUR CONTROLS

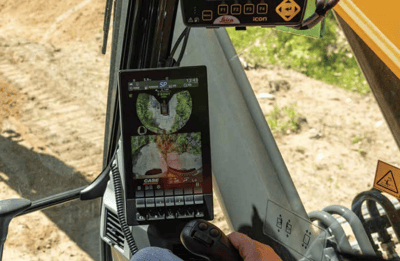

Case Construction CX170E LDC screen.png
The new 10-inch LCD display offers excellent control customization with five configurable buttons for quick access to key functions like fuel consumption, machine information, and auxiliary hydraulics. This allows operators to easily tailor the interface to their most-used features, enhancing efficiency and control.

GREATER HYDRAULIC CONTROL

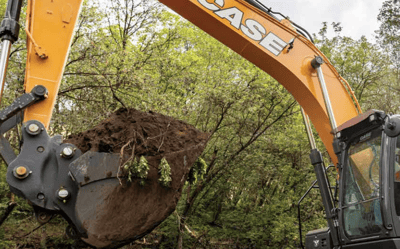

Case Construction CX170E hydraulics.png
All-new Hydraulic Flow Control Balance customizes the priority of hydraulic flow used for arm in and boom up movements, and for arm in and swinging movements. This makes the excavator even more responsive and efficient based on the type of work and operator preference.

NEW OPERATOR MODES

E Series excavators feature four working modes to optimize performance and fuel economy for various applications: Super Power (SP) for high-demand tasks, Power (P) with adjustable throttle settings, Lifting (L) for efficient object handling, and Eco (E) for up to 5% better fuel efficiency. Each mode is designed to match specific operational needs and maximize productivity.

Case Construction CX170E excavator.png

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
8' 3"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
274 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT NEF4
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
130 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Arm Digging Force
16200-17800 lb
Bucket Digging Force
25200 lb
Ground Pressure
5.9 psi
Lift Capacity
See full spec sheet
Travel Speed
3.2 mph
Max Dig Depth
19' 11"
Max Dump Height
21' 8"
Max Reach
30' 4"
Driveline
Track
Dimensions & Weight
Ground Clearance
17 in
Height
117 in
Height with Operator Cab
121 in
Length
176 in
Operating Weight
38400 lb
Size Class
12-20 Ton
Weight Class
19 t
Width
99 in
Capacities
DEF
16 gal
Hydraulic Tank
22 gal
Fuel Tank
79 gal
Hydraulic System
Hydraulic System
Open center
Auxiliary Pressure
570 psi
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX170E
Type
Large Excavator
Size Class
12-20 Ton
Product Dimensions & Weight
Length
176.00 in
Width
102.00 in
Height
117.00 in
Weight
38400.00 lbs
