New
Case Construction CX17C Mini Excavator
New
Case Construction CX17C Mini Excavator
Model: CX17C
- 7' 3" max dig depth
- 16.8 engine horsepower
- 3,910 lb. operating weight
Product Description
MEET THE CX17C EXCAVATOR
The CX17C delivers a dig depth of 7 ft. 3 in. and provides digging forces of 3,490 lbf. resulting in strong excavating performance while making minimal impact to the ground below. With zero tailswing, standard auxiliary hydraulics, backfill blade, an easily transportable size and a zero-effort Tier 4 Final solution, it's a versatile addition to up-and-coming companies, landscapers or any contractor looking to easily expand their fleet. Long arm option available.

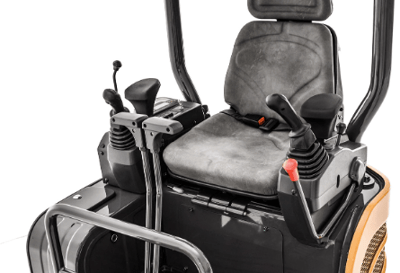

ADJUSTABLE CONTROLS
AUTO-SHIFT
Specs
| Additional Specs | |
|---|---|
| Tail Swing | 2' 1" |
| Tail Swing Type | Zero |
| Operator Station | Canopy |
| Engine | |
|---|---|
| Displacement | 54.8 cu in |
| Emissions Tier (EPA) | Tier 4 |
| Engine Model | Kubota D902 |
| Fuel Type | Diesel |
| Gross HP | 16.8 hp |
| No. Of Cylinders | 3 |
| Performance | |
|---|---|
| Arm Digging Force | 1710-1920 lb |
| Boom Swing Angle Left/Right | 70 degrees left/54 degrees right |
| Bucket Digging Force | 3490 lb |
| Ground Pressure | 3.98 psi |
| Lift Capacity | See full spec sheet |
| Travel Speed | 2.6 mph |
| Max Dig Depth | 7' 3" |
| Max Dump Height | 8' 5" |
| Max Reach | 11' 9" |
| Driveline | Track |
| Dimensions & Weight | |
|---|---|
| Ground Clearance | 6.7 in |
| Height | 91 in |
| Length | 63 in |
| Operating Weight | 3910-4110 lb |
| Size Class | 1-4 Ton |
| Weight Class | 2 t |
| Width | 35 in |
| Capacities | |
|---|---|
| Hydraulic Tank | 6.1 gal |
| Fuel Tank | 5.3 gal |
| Hydraulic System | |
|---|---|
| Hydraulic System | Gear |
| Transmission | |
|---|---|
| Transmission | Hydrostatic (HST) |
| Make/Model | |
|---|---|
| Model | CX17C |
| Type | Compact Excavator |
| Size Class | 1-4 Ton |
| Product Dimensions & Weight | |
|---|---|
| Length | 135.00 in |
| Width | 39.00 in |
| Height | 91.00 in |
| Weight | 4110.00 lbs |
