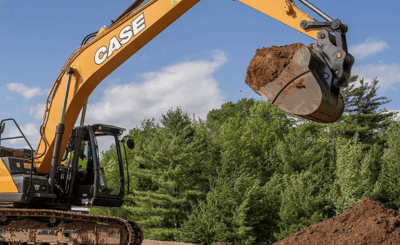

Case Construction CX190E Large Excavator

Case Construction CX190E bucket.png

Product Description

Case Construction CX190E bucket.png

MEET THE CX190E EXCAVATOR

Case built this machine just north of 40,000 pounds and capable of putting up production-level numbers while still being easy to own, operate and transport. it puts up production figures that outpace its size class. It’s got 121 horses that generate 26,500 lbs. of bucket breakout force, enough to make serious hay on any site. All while delivering the premium operator experience of the new CASE E Series excavators.

FOUR OPERATOR MODES

Case Construction E Series Excavator.png
E Series excavators feature four working modes to optimize performance and fuel economy for various applications: Super Power (SP) for high-demand tasks, Power (P) with adjustable throttle settings, Lifting (L) for efficient object handling, and Eco (E) for up to 5% better fuel efficiency. Each mode is designed to match specific operational needs and maximize productivity.

GREATER HYDRAULIC CONTROL

Case Construction CX170E hydraulics.png
All-new Hydraulic Flow Control Balance customizes the priority of hydraulic flow used for arm in and boom up movements, and for arm in and swinging movements. This makes the excavator even more responsive and efficient based on the type of work and operator preference.

CUSTOM OPERATION

The roomy cab serves as a true command center, featuring a massive 10-inch LCD monitor with customizable controls, a 270-degree camera view, and climate control for optimal comfort. The new suspended operator station, with adjustable console and armrests, ensures a consistent and personalized experience for operators of all sizes, enhancing control and efficiency.

Case Construction CX170E LDC screen.png

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
8' 3"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
274 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT NEF4
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
121 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Arm Digging Force
16200-17800 lb
Bucket Digging Force
25200 lb
Ground Pressure
6.1 psi
Lift Capacity
See full spec sheet
Travel Speed
2.7 mph
Max Dig Depth
19' 11"
Max Dump Height
21' 8"
Max Reach
30' 4"
Driveline
Track
Dimensions & Weight
Ground Clearance
16 in
Height
117 in
Height with Operator Cab
121 in
Length
180 in
Operating Weight
41000 lb
Size Class
20-40 Ton
Weight Class
20.5 t
Width
99 in
Capacities
DEF
16 gal
Hydraulic Tank
22 gal
Fuel Tank
79 gal
Hydraulic System
Hydraulic System
Open center
Auxiliary Pressure
570 psi
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX190E
Type
Large Excavator
Size Class
20-40 Ton
Product Dimensions & Weight
Length
180.00 in
Width
110.00 in
Height
117.00 in
Weight
41000.00 lbs
