Case Construction CX220E Large Excavator

Case Construction CX220E Excavator.jpg

Product Description

Case Construction CX220E excavator.png

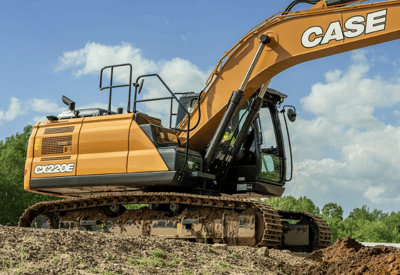

MEET THE CX220E EXCAVATOR

At 50,000 pounds and engineered for pure power, speed, responsiveness and operator satisfaction, the CX220E is built to do one thing: work. Big enough to put up serious production numbers, versatile enough to be seen on projects ranging from basement digs to massive freeway construction. When in doubt — the CX220E is a good place to start. From the entirely new and enhanced operator experience to OEM-fit machine control solutions, the CX220E has the ability to be your most valuable excavator.

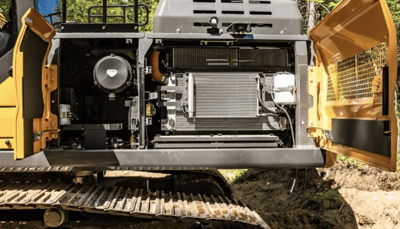

ENGINE EXCELLENCE

Case Construction E Series engine.png
Delivering increased displacement, horsepower, and torque for enhanced power and responsiveness, with extended service intervals of 1,000 hours for engine oil and filters is the FPT engine. Their innovative emissions system, combining DOC, SCR, and particulate matter catalyst technologies, ensures greater fuel efficiency and reliability without requiring after-treatment replacements or mechanical service over time.

GREATER HYDRAULIC CONTROL

Case Construction CX170E hydraulics.png
All-new Hydraulic Flow Control Balance customizes the priority of hydraulic flow used for arm in and boom up movements, and for arm in and swinging movements. This makes the excavator even more responsive and efficient based on the type of work and operator preference.

FOUR OPERATOR MODES

E Series excavators feature four working modes to optimize performance and fuel economy for various applications: Super Power (SP) for high-demand tasks, Power (P) with adjustable throttle settings, Lifting (L) for efficient object handling, and Eco (E) for up to 5% better fuel efficiency. Each mode is designed to match specific operational needs and maximize productivity.

Case Construction E Series Excavator.png

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
9' 3"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
411 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT NEF6
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
162 hp
No. Of Cylinders
6
Turbocharged Engine
Yes
Performance
Arm Digging Force
23200-27700 lb
Bucket Digging Force
31900 lb
Ground Pressure
4.93 psi
Lift Capacity
See full spec sheet
Travel Speed
3.5 mph
Max Dig Depth
21' 9"
Max Dump Height
22' 3"
Max Reach
32' 6"
Driveline
Track
Dimensions & Weight
Ground Clearance
16 in
Height
145 in
Height with Operator Cab
117 in
Length
199 in
Operating Weight
50000 lb
Size Class
20-40 Ton
Weight Class
25 t
Width
109 in
Capacities
DEF
22 gal
Hydraulic Tank
43 gal
Fuel Tank
108 gal
Hydraulic System
Hydraulic System
Open center
Auxiliary Pressure
570 psi
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX220E
Type
Large Excavator
Size Class
20-40 Ton
Product Dimensions & Weight
Length
199.00 in
Width
125.00 in
Height
116.00 in
Weight
50000.00 lbs
