Case Construction CX245D SR Large Excavator

Case Construction CX245DSR.jpg

Product Description

Case Construction CX245D SR excavator.png

MEET THE CX245D SR EXCAVATOR

The CX245D SR features a minimum-swing-radius design and a modified boom placement that minimizes the machine’s footprint while still delivering trademark CASE D Series power, precision, responsiveness and performance. A powerful and versatile utility performer, the CX245D SR lets you shut down fewer lanes and work up against structures without sacrificing any performance. It’s a highly productive and maneuverable excavator that’s ideal for restricted conditions, such as road and bridge work, residential projects and urban construction. It is protected by CASE ProCare and is also now available with OEM-Fit 2D and 3D machine control solutions.

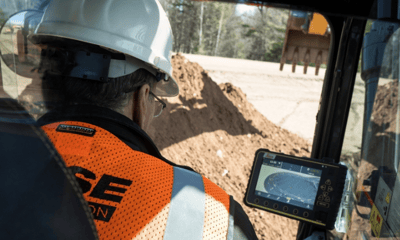

MACHINE CONTROL SYSTEMS

Case Construction CX245D OEM-fit.png
This takes the guesswork out of matching machine and solution, and guarantees that each system is installed and tested by CASE certified precision field specialists. Additionally, it simplifies acquisition and financing, while increasing the residual/resale value of the excavator.

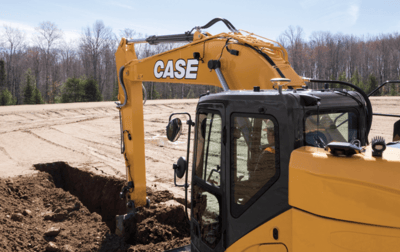

INTELLIGENT HYDRAULICS

Case Construction CX245D hydraulics.png
The CASE Intelligent Hydraulic System (CIHS) actively manages hydraulic power throughout lift/dump and dig/curl movements to maximize speed and efficiency while reducing fuel consumption by minimizing unnecessary flow.

PICK YOUR POWER

The D Series excavators come with three power modes to tailor performance and fuel efficiency to various applications: Automatic (A) balances power and fuel economy with continuous Power Boost, Heavy (H) boosts RPMs for quicker cycle times during loading, and Speed Priority (SP) delivers maximum RPMs and hydraulic flow for demanding attachments. This versatility ensures operators can optimize performance for any task.

Case Construction E Series Excavator.png

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
6' 4"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
317 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Isuzu AR-4HK1X
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
160 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Arm Digging Force
23100-27600 lb
Bucket Digging Force
31800 lb
Ground Pressure
5.8 psi
Lift Capacity
See full spec sheet
Travel Speed
3.1 mph
Max Dig Depth
21' 10"
Max Dump Height
25 ft
Max Reach
34' 7"
Driveline
Track
Dimensions & Weight
Ground Clearance
17 in
Height
125 in
Height with Operator Cab
120 in
Length
176 in
Operating Weight
56900 lb
Size Class
20-40 Ton
Weight Class
28.5 t
Width
118 in
Capacities
Hydraulic Tank
30 gal
Fuel Tank
85 gal
Hydraulic System
Hydraulic System
Open center
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX245D SR
Type
Large Excavator
Size Class
20-40 Ton
Product Dimensions & Weight
Length
176.00 in
Width
126.00 in
Height
125.00 in
Weight
56900.00 lbs
