Case Construction CX260E Large Excavator

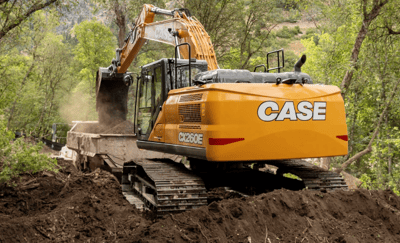

Case Construction CX260 E.jpg

Product Description

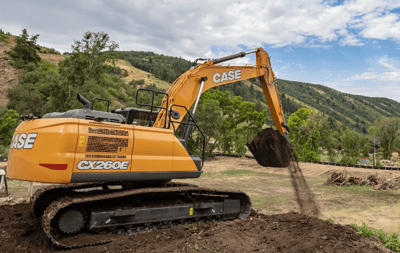

Case Construction CX260E excavator.png

MEET THE CX260E EXCAVATOR

An excavator built for fast cycle times, extreme truck loading and massive digging power. The CASE CX260E matches big excavator performance with a premium operator experience to deliver a true “operator’s excavator”. Well-matched with 2D and 3D machine control solutions available. The CX250E also offers premium collaborative fleet management capabilities such as remote diagnostics and software uploads. The CX260E allows you to go big — all with confidence and peace of mind.

WORK HOW YOU WANT

Case Construction CX260E bucket.png
E Series excavators feature four working modes to optimize performance and fuel economy for various applications: Super Power (SP) for high-demand tasks, Power (P) with adjustable throttle settings, Lifting (L) for efficient object handling, and Eco (E) for up to 5% better fuel efficiency. Each mode is designed to match specific operational needs and maximize productivity.

GREATER HYDRAULIC CONTROL

Case Construction CX170E hydraulics.png
All-new Hydraulic Flow Control Balance customizes the priority of hydraulic flow used for arm in and boom up movements, and for arm in and swinging movements. This makes the excavator even more responsive and efficient based on the type of work and operator preference.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
9' 9"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
411 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
FPT NEF6
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
179 hp
No. Of Cylinders
6
Turbocharged Engine
Yes
Performance
Arm Digging Force
24055-31698 lb
Bucket Digging Force
36419 lb
Ground Pressure
5.5 psi
Lift Capacity
See full spec sheet
Travel Speed
3.4 mph
Max Dig Depth
22' 8"
Max Dump Height
22' 2"
Max Reach
28' 7"
Driveline
Track
Dimensions & Weight
Ground Clearance
17 in
Height
126 in
Height with Operator Cab
120 in
Length
209 in
Operating Weight
56900 lb
Size Class
20-40 Ton
Weight Class
28.5 t
Width
109 in
Capacities
DEF
22 gal
Hydraulic Tank
43 gal
Fuel Tank
108 gal
Hydraulic System
Hydraulic System
Open center
Auxiliary Pressure
570 psi
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX260E
Type
Large Excavator
Size Class
20-40 Ton
Product Dimensions & Weight
Length
209.00 in
Width
133.00 in
Height
126.00 in
Weight
56900.00 lbs
