Case Construction CX26C Mini Excavator

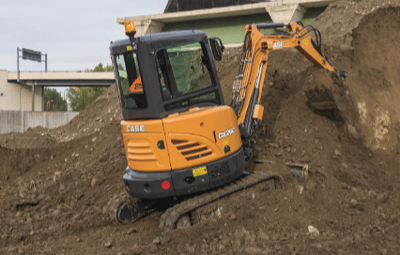

Case Construction CX26C Excavator.jpg

Product Description

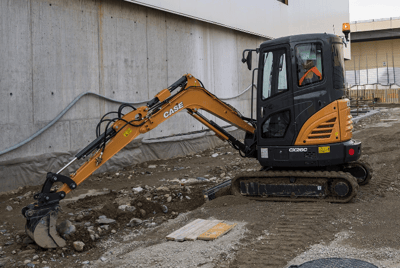

Case Construction CX26C studio.png

MEET THE CX26C EXCAVATOR

The 5,520 lb., Tier 4 Final CX26C provides excellent breakout force in a lightweight, zero tailswing excavator that achieves dig depths of nearly 8 feet. This compact, transport-friendly power makes this mini ideal for landscapers, utility companies and contractors working in developed neighborhoods or trying to minimize yard damage. With standard push blade, auxiliary hydraulics and proportional controls, as well as an available heated cab, the CX26C is a multi-use platform for a wide variety of applications and environments.

BIG PERFORMANCE

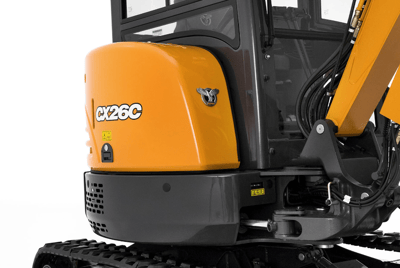

Case Construction CX26C tailswing.png
The zero tailswing and swing boom design allow close work near structures or roadways, while the standard multifunction auxiliary hydraulics support various attachments. Three working modes—Power, Standard, and Economy—optimize productivity for different tasks.

AUTO-SHIFT

Case Construction CX26C excavator.png
The CX26C mini excavator automatically downshift to increase torque when traveling on slopes or in rough conditions, and then automatically shift back up on smooth terrain. This provides consistent speeds around a jobsite without the need for operator adjustment.

Specs

Additional Specs
Cab Enclosure
Optional
Tail Swing
2' 6"
Tail Swing Type
Zero
Operator Station
ROPS
Engine
Displacement
77 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Kubota D1305
Fuel Type
Diesel
Gross HP
24.8 hp
No. Of Cylinders
3
Performance
Arm Digging Force
2880-3280 lb
Boom Swing Angle Left/Right
75 degrees left/50 degrees right
Bucket Digging Force
4740 lb
Ground Pressure
4.3-4.6 psi
Lift Capacity
See full spec sheet
Travel Speed
2.7 mph
Max Dig Depth
7' 11"
Max Dump Height
9' 7"
Max Reach
13' 7"
Driveline
Track
Dimensions & Weight
Ground Clearance
11 in
Height
98 in
Length
75 in
Operating Weight
5520-6160 lb
Size Class
1-4 Ton
Weight Class
3 t
Width
55 in
Capacities
Hydraulic Tank
14.5 gal
Fuel Tank
7.9 gal
Hydraulic System
Hydraulic System
Gear
Transmission
Transmission
Hydrostatic (HST)
Make/Model
Model
CX26C
Type
Compact Excavator
Size Class
1-4 Ton
Product Dimensions & Weight
Length
159.00 in
Width
59.00 in
Height
98.00 in
Weight
6160.00 lbs
