Case Construction CX290D Material Handler Excavator

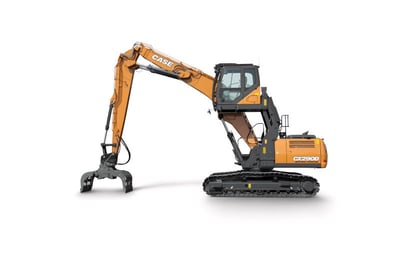

Case Construction CX290D.jpg

Product Description

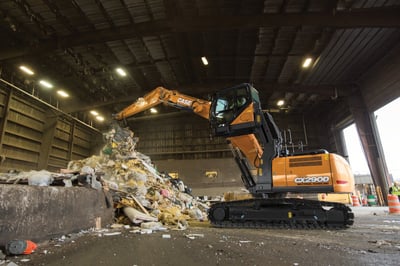

Case Construction CX290D Material Handler.jpg

MEET THE CX290D MATERIAL HANDLER

Handler and Scrap Loader both feature a 177 HP Tier 4 Final engine, a hydraulically controlled elevating cab, longer arm & boom with optimized hydraulic circuits for superior attachment performance, as well as, an Anti-interference Device that automatically prevents the boom and arm from coming into contact with the machine’s structure during operation. The CX290D also features additional guarding on the cab and undercarriage designed to protect the operator and machine during tough waste and scrap handling applications.

MATCH YOUR POWER

Case Construction CX290D.jpg
CASE Specialty excavators feature three power modes to match different applications and optimize fuel economy: Automatic (A) balances power, control, and fuel efficiency with continuous Power Boost. Heavy (H) mode increases RPMs for faster cycle times, while Speed Priority (SP) maximizes RPMs and hydraulic flow for demanding tasks and attachments.

NO HASSLE EMISSIONS

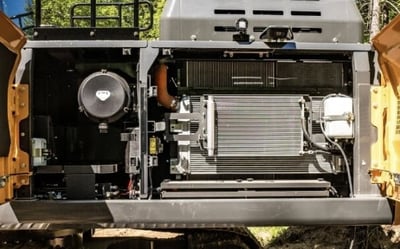

Case Construction CX290D Material Handler.jpg
Both the material handler and scrap loader meet Tier 4 Final standards through an innovative combination of selective catalytic reduction (SCR) and Diesel Oxidation Catalyst (DOC) technologies, which helps maximize uptime and performance.

Specs

Additional Specs
Air Conditioning
Standard
Cab Enclosure
Standard
Tail Swing
9' 8"
Operator Station
ROPS, Enclosed Cab
Engine
Displacement
317 cu in
Emissions Tier (EPA)
Tier 4
Engine Model
Isuzu AQ-4HK1X
Fuel Type
Ultra-low sulfur fuel, B5 biodiesel tolerant
Gross HP
177 hp
No. Of Cylinders
4
Turbocharged Engine
Yes
Performance
Ground Pressure
9.4 psi
Lift Capacity
See full spec sheet
Travel Speed
3.4 mph
Max Dig Depth
11' 11"
Max Dump Height
41 ft
Max Reach
38 ft
Driveline
Track
Dimensions & Weight
Ground Clearance
20 in
Height
120 in
Height with Operator Cab
126 in
Length
210 in
Operating Weight
72100 lb
Size Class
20-40 Ton
Weight Class
36 t
Width
117 in
Capacities
DEF
31.7 gal
Hydraulic Tank
38.8 gal
Fuel Tank
108.3 gal
Hydraulic System
Hydraulic System
Open center
Transmission
Transmission
Hydraulic Drive
Make/Model
Model
CX290D
Type
Large Excavator
Size Class
20-40 Ton
Product Dimensions & Weight
Length
210.00 in
Width
126.00 in
Height
120.00 in
Weight
72100.00 lbs
